bus sector fire suppression system

Premium Automatic Fire Suppression Systems

detexline 4V fire suppression system logo

Buses | Trucks | Road Vehicles | Rail

certifications for fire suppression systems

Ownership Unique Advantages:

  • No pressure
  • No electricity
  • (nearly) maintenance-free
  • Ultrafast detection & extinguishing
  • Hybrid system (liquid/gas)
  • Works in all angles and positions
  • Short downtimes through maintenance on the spot (every 10 years)
  • Works in temperatures from -30 to 80 degrees celsius
  • R-107 Certification

No False Activations!

We design and produce special projects and OEM Systems

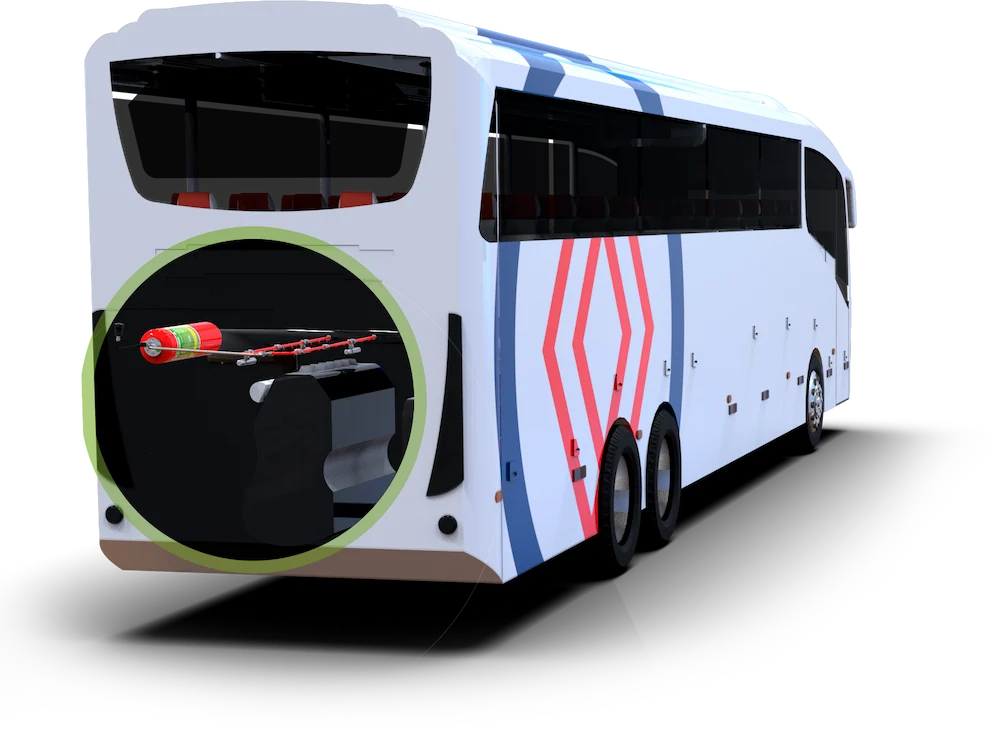

bus fire suppression system
bus fire suppression system

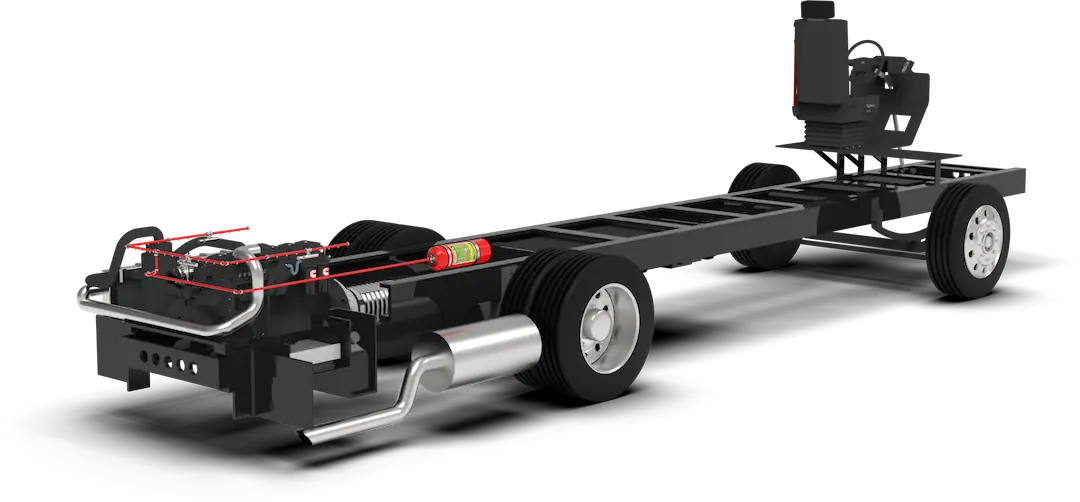

System components

  1. SPY thermo-pneumatic detector
  2. Fine Spray Nozzle Bar

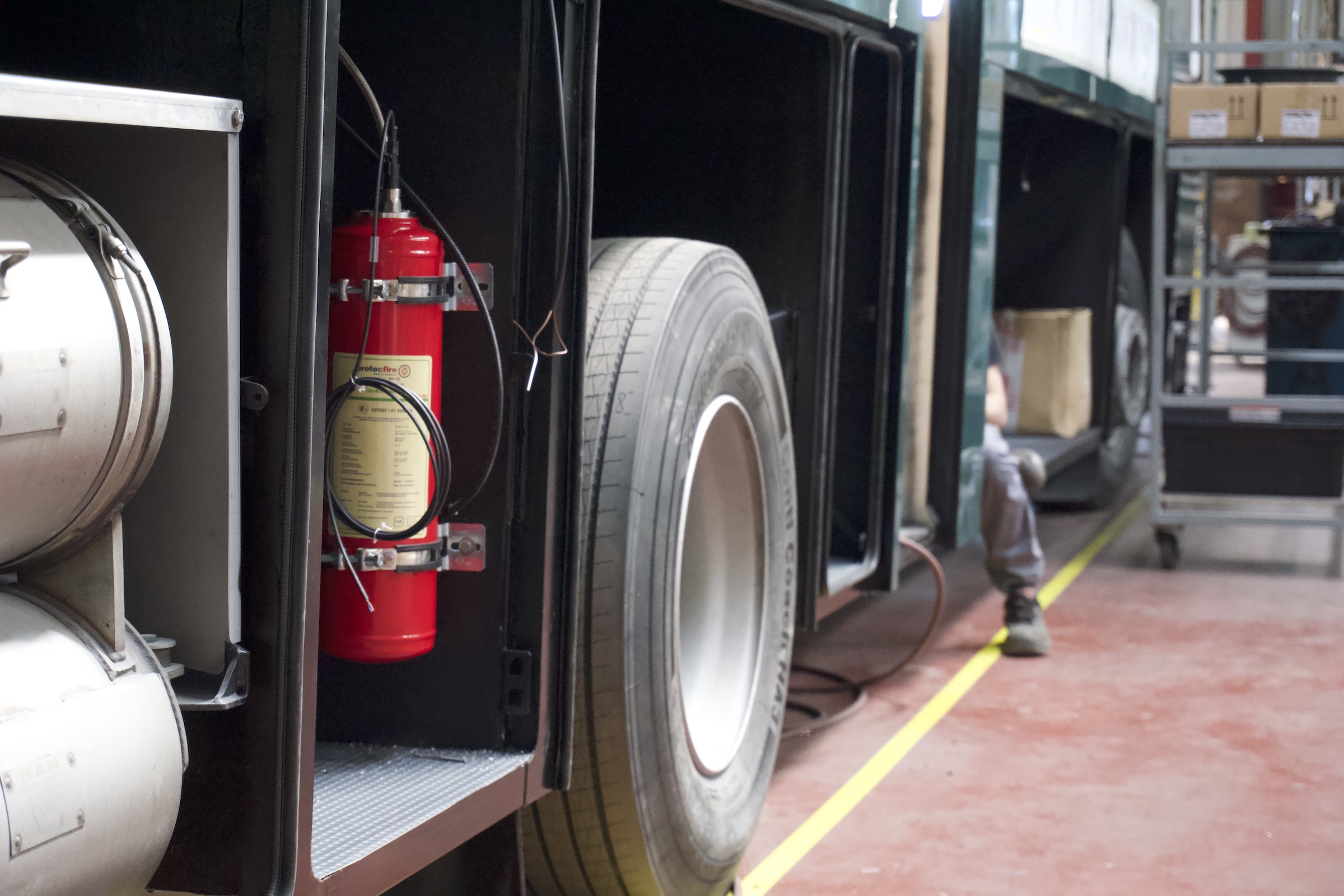

  3. Non pressurized extinguishing container
  4.  detexline (extinguishing and detection pipping)
  5. Optical and acoustic alarm / test button
  6. Pressure Switch
  7. Pneumatic manual actuator

Directional Valves for Electric and Hydrogen Buses

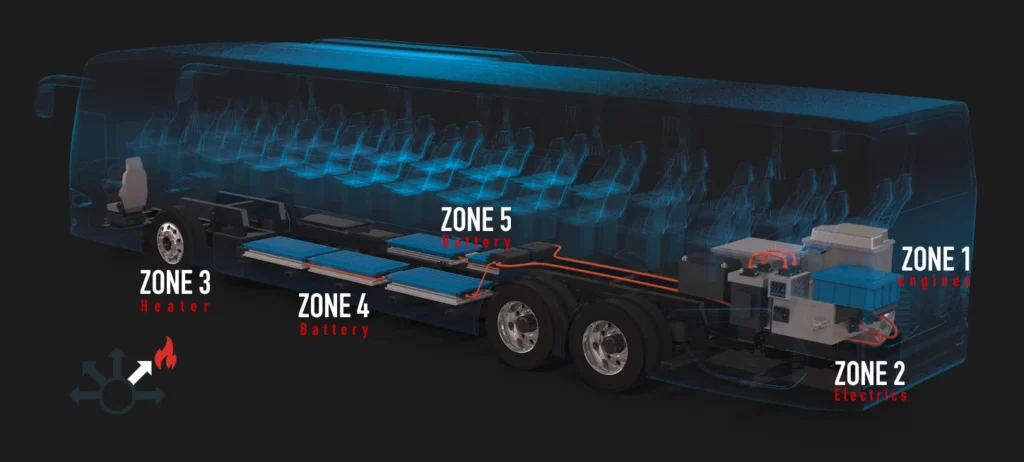

Independent Detection and Extinguishing Zones connected to the same extinguishing container:

  • Less Extinguishing Agent
  • Independent Detection
  • Independent Extinguishing
  • Fully mechanical – No electricity

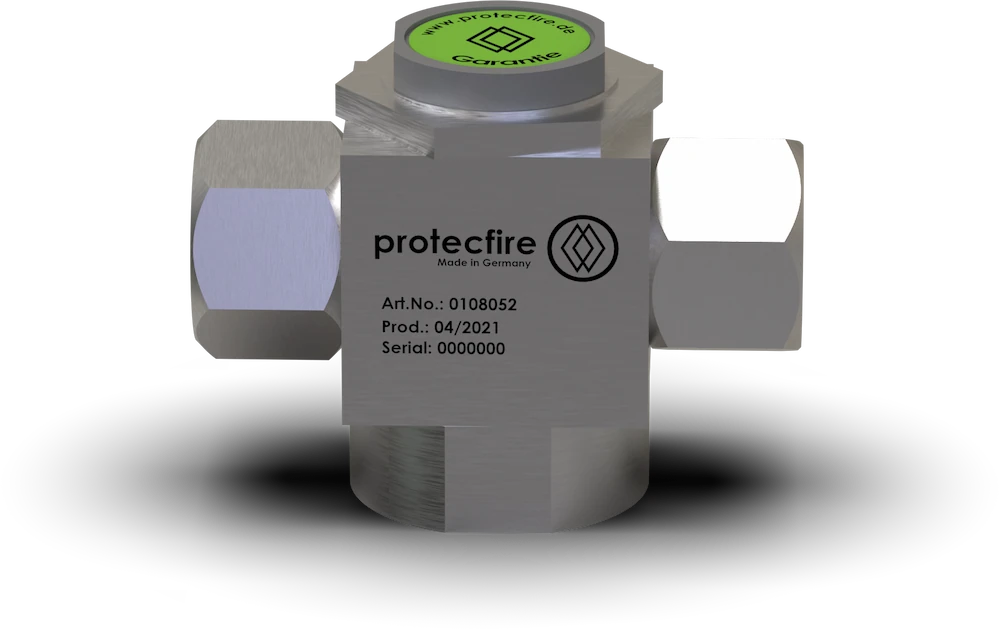

  • Mechanical directional valve
  • Multiple zones with no limit
  • Everything in the same pipeline!

Leading the way in electric buses fire suppression systems

Unece R-107 approved

UNECE R017 approved system

Regulation for Fire Suppression Systems in Engine Compartments of Buses, Coaches

This document includes a fire-testing procedure for fire suppression systems for engine compartments of buses and coaches and includes four tests extracted from SP Method 4912 (SP is a Technical Service for UNECE Regulation No. 107)

The requirements of fire suppression systems apply to: single-deck double-deck rigid or articulated vehicles Category M2 or M3 and specifically vehicles having a capacity exceeding 22 passengers in addition to the driver – “Class III”. Class III vehicles are constructed exclusively for the carriage of seated passengers, more commonly referred to as “coaches”.

-50ºc and -30ºc up to 80ºc

No Electricity

Ultra-Fast

Low Maintenance

No Pressure

1 line

Fully Mechanical

Easy to Install

Stainless Steel

Super Robust

Extremely compact !

SMALL AND EFFECTIVE!

  • 4 Lt System (smaller vehicles)
  • 7 Lt System (up to 4m3)
  • 14 Lt System
  • 24 Lt System
  • Multiple containers can be installed in 1 system
  • Sectorization possibility (battery compartment/engine) with different areas of detection and extinguishing.

SPY® - Thermo Pneumatic detection

  • Simple, super-fast and reliable
  • No false alarms.
  • Multiple temperature range:
    57 ºC | 68 ºC | 79 ºC | 93 ºC | 110 ºC | 141 ºC | 182 ºC | 230 ºC | 260 ºC
  • Sensitive to hidden fires
  • Robust and Precise
  • Stainless steel
    Ultra-Fast RTI 12 (Reaction Time)

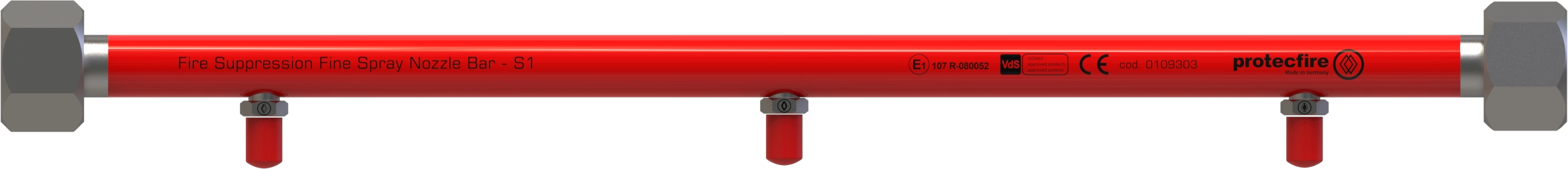

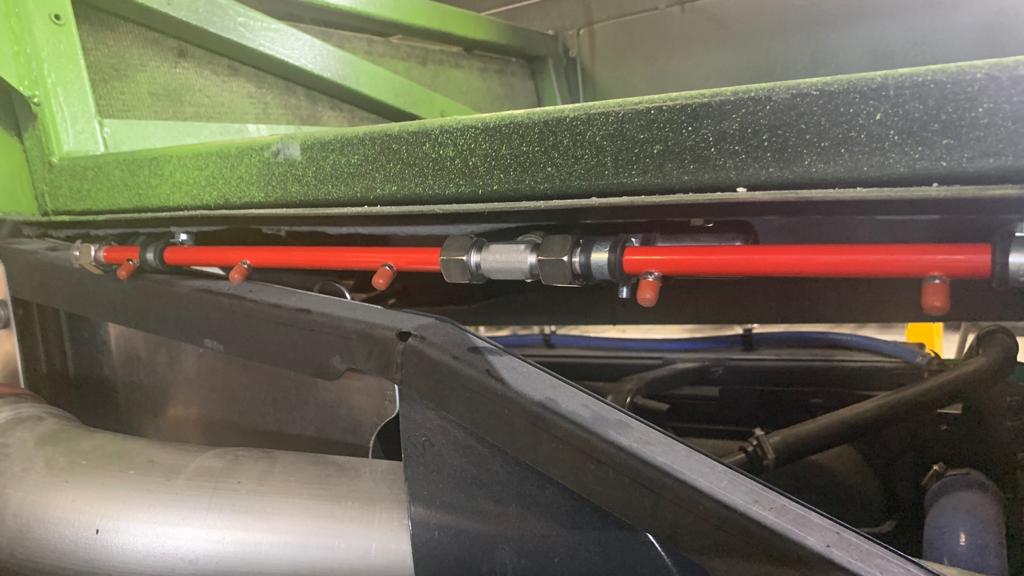

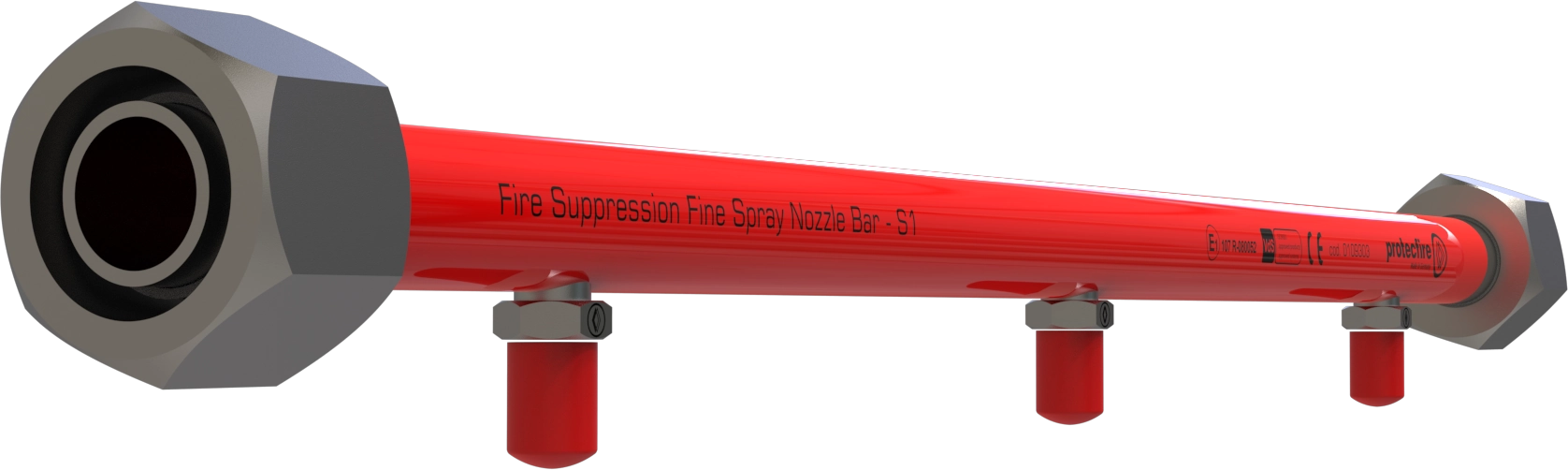

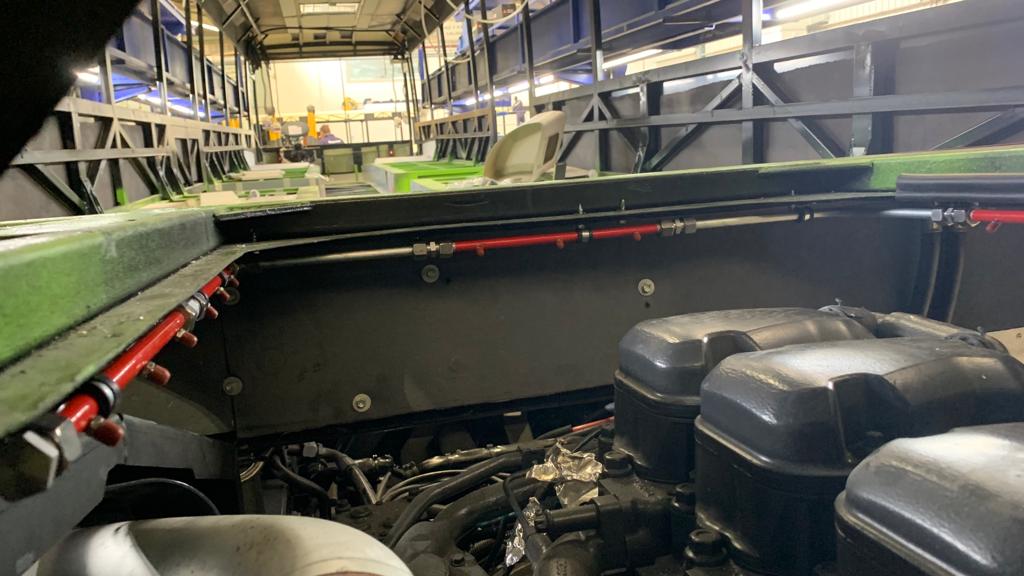

Fine-Spray Nozzle Bars

  • Completely made of stainless steel

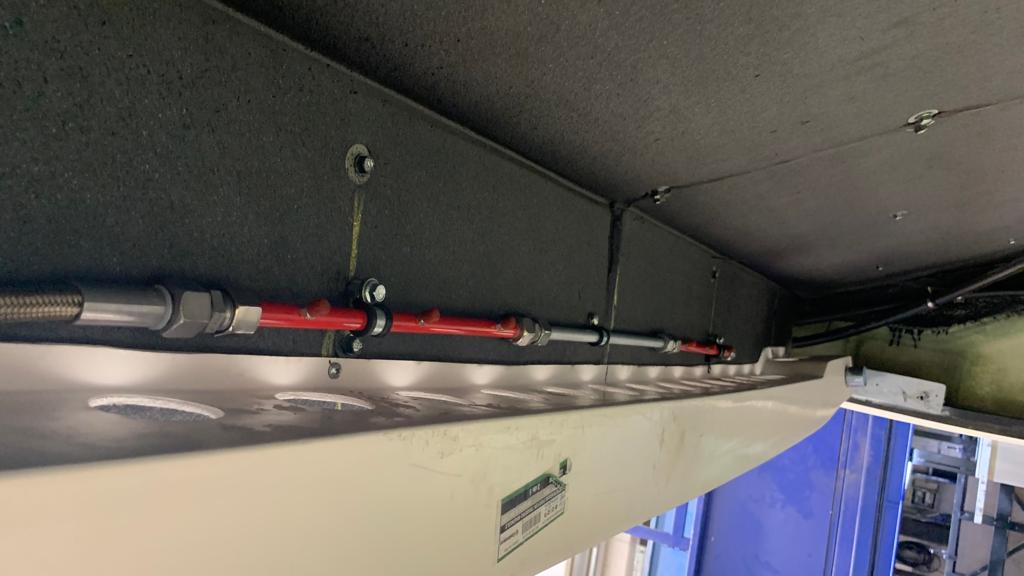

  • fastest way to install a fire suppression system in compartments.
  • Installation time was reduced by more than 50%.
  • up to 90º Angle Spray
  • A perfect fine spray for temperature reduction and penetration.

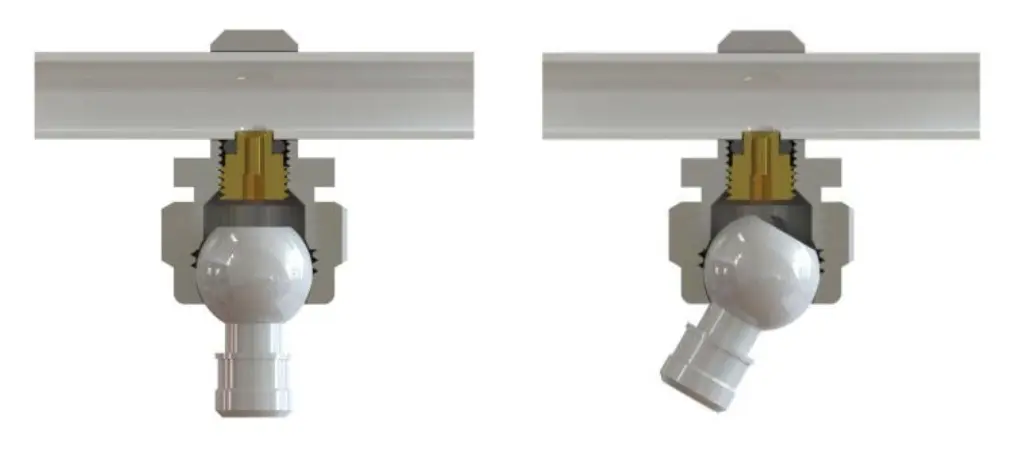

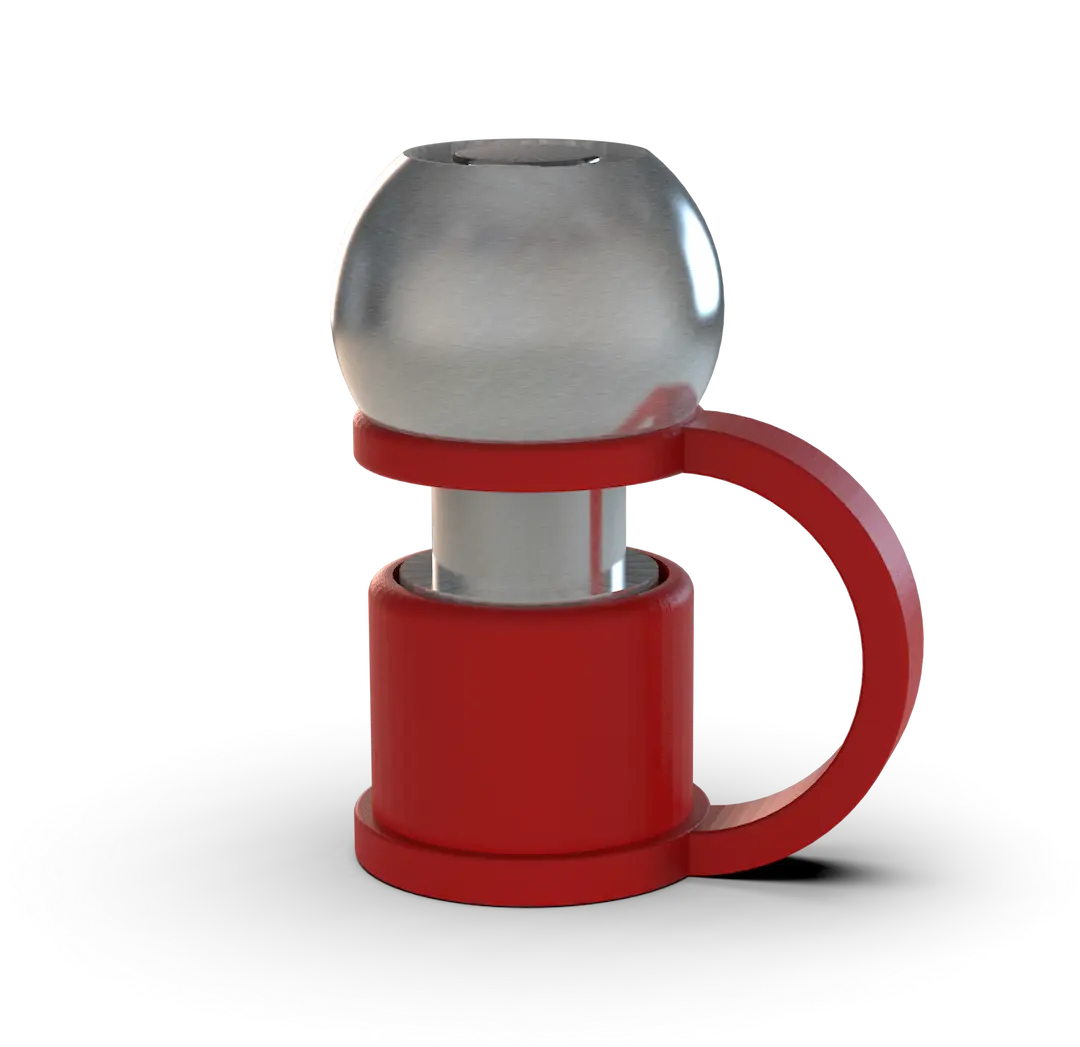

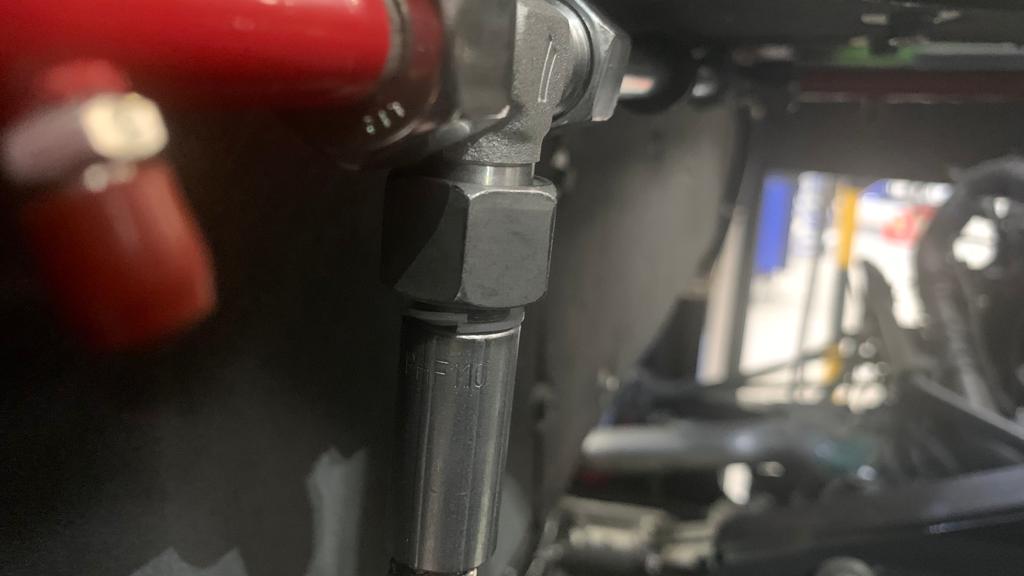

Directional Fine-Spray Nozzle

  • Completely made of stainless steel
  • Directional spherical nozzle with a K-factor of 1
  • Mist nozzle
  • Full cone spray pattern with 90º angle
  •  The nozzle is protected by a red cap

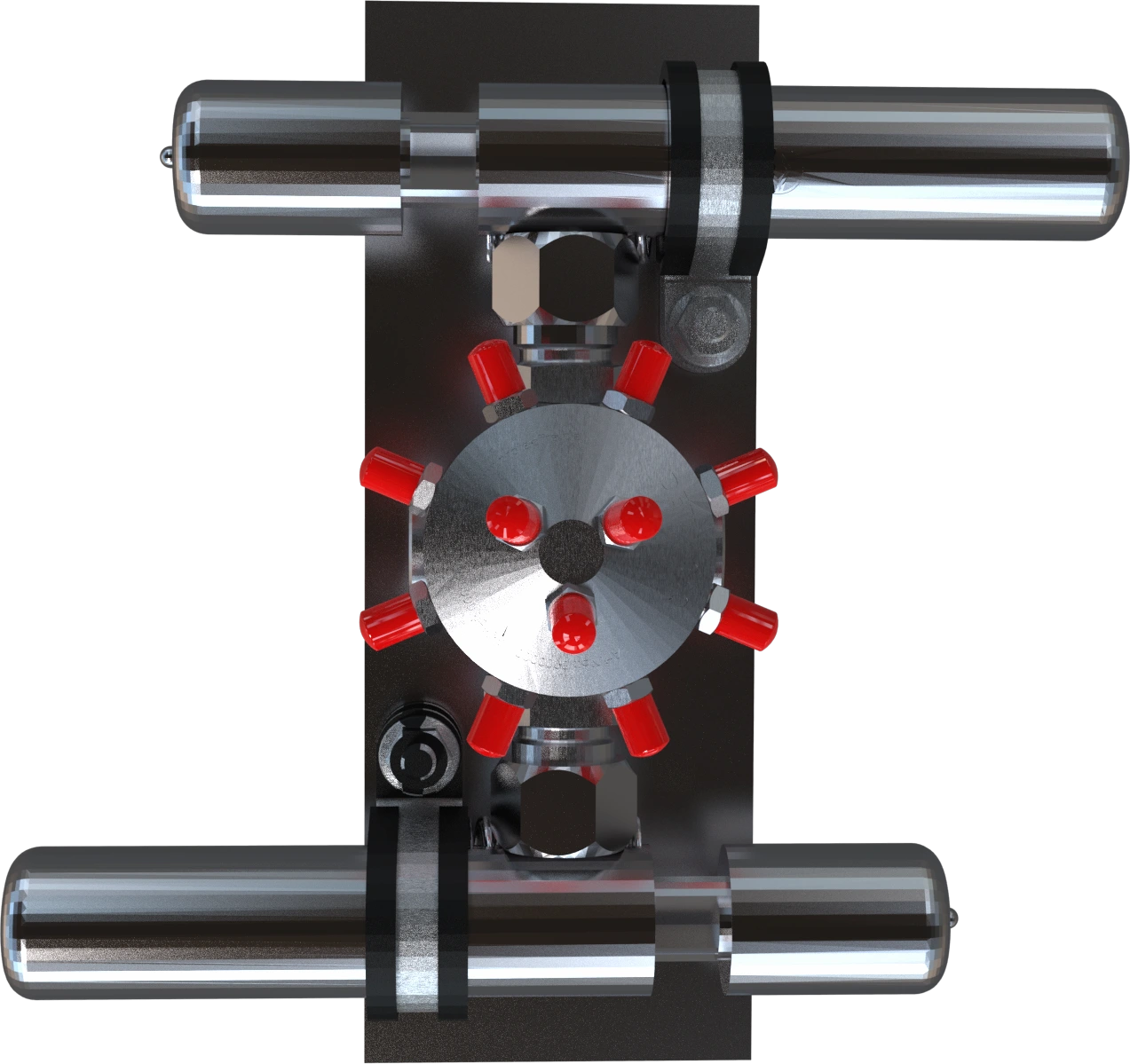

detex360® special nozzle

  • 360º spray (total flood)
  • Completely made of stainless steel
  • Easy to instal
  • Installation time was reduced by more than 90%.
  • A perfect fine spray for temperature reduction and penetration.
  • 1 piece combination with SPY detectors

Pneumatic manual release (Optional)

  • Very robust
  • Up to 20 meters distance from the tank (or more with a booster)
  • Weather resistant
  • Easy to operate
  • Long lasting

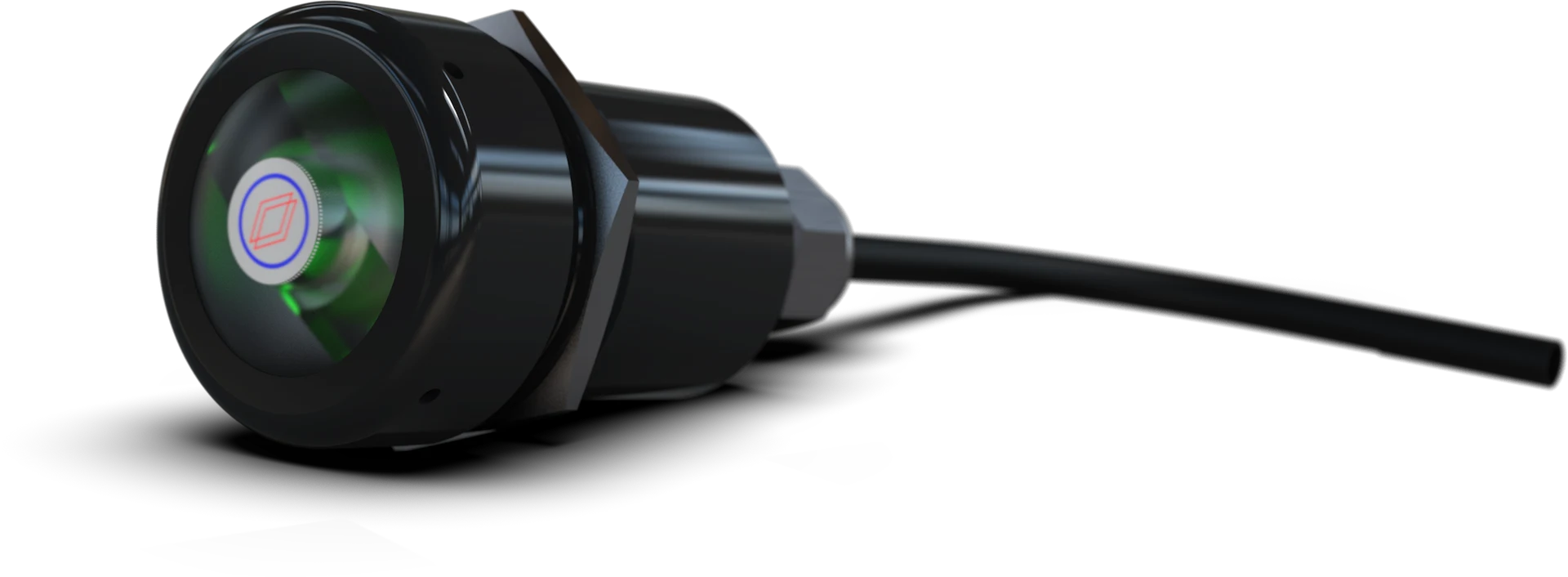

Alarm / Test button (optional)​

  • System test function
  • Buzzer Alarm
  • Led warning light (green and red)
  • IP44 | 10–24 V DC | M 32 x 1.5 | Plastic
  • Easy to operate
  • Relay with potential-free contacts and a microcontroller
  • Time-delay shutdown for the engine with time extension by command

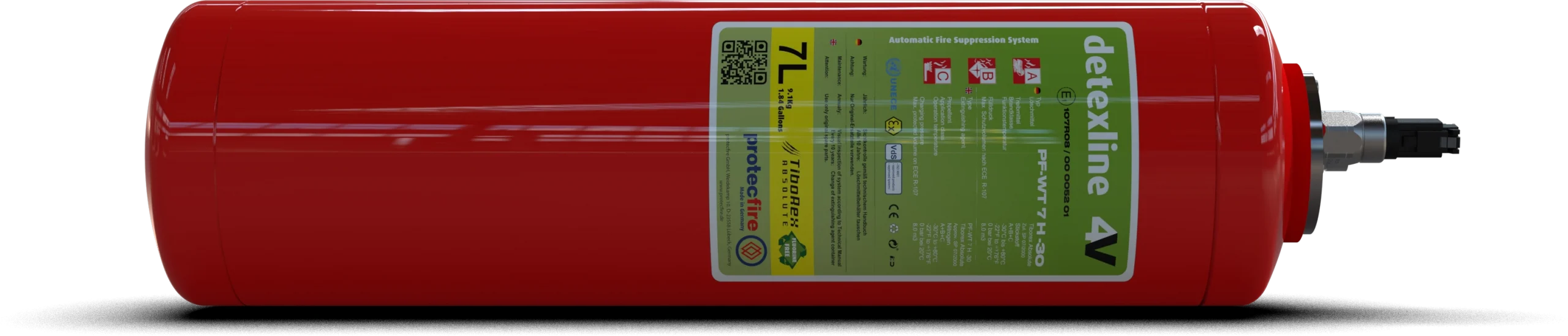

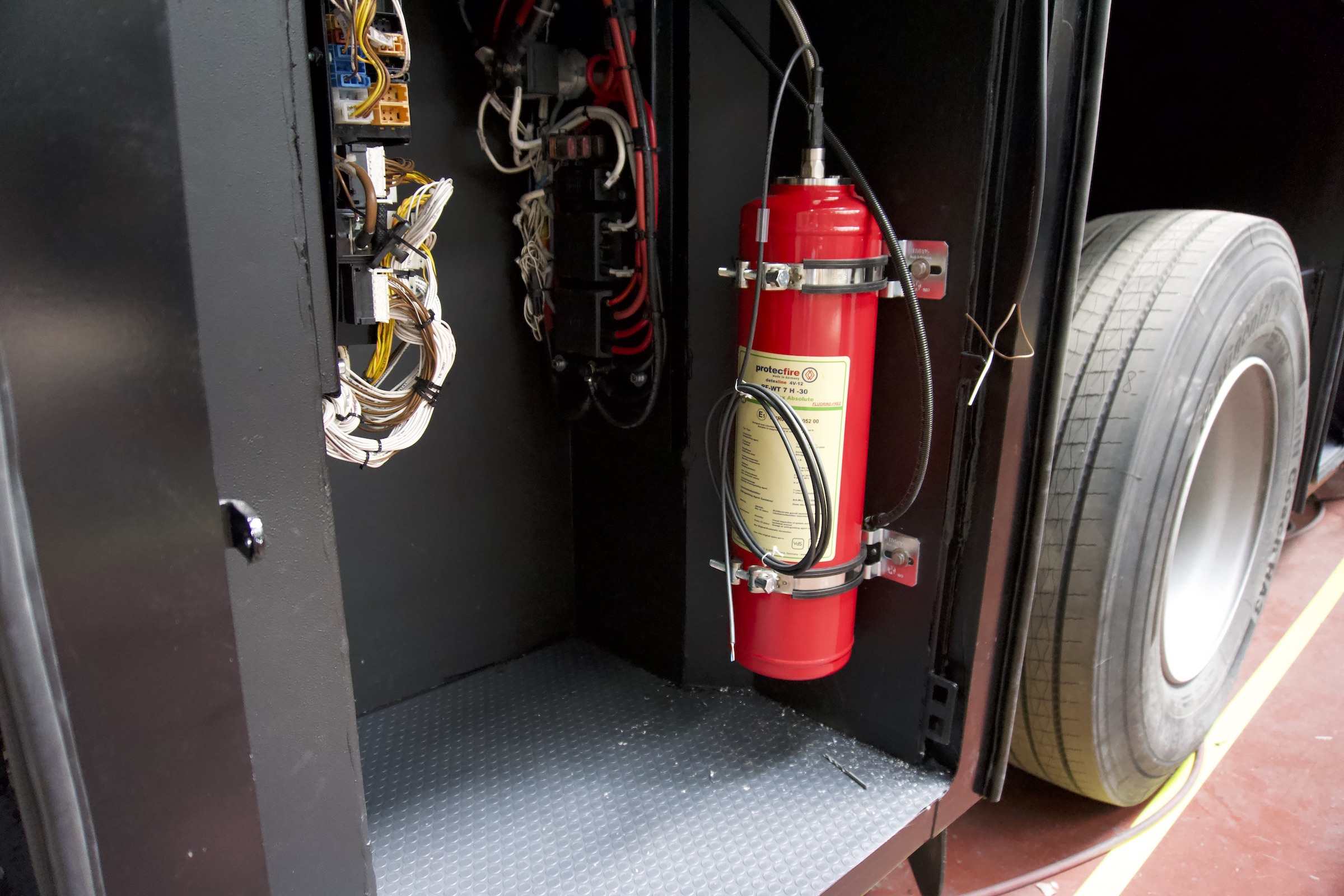

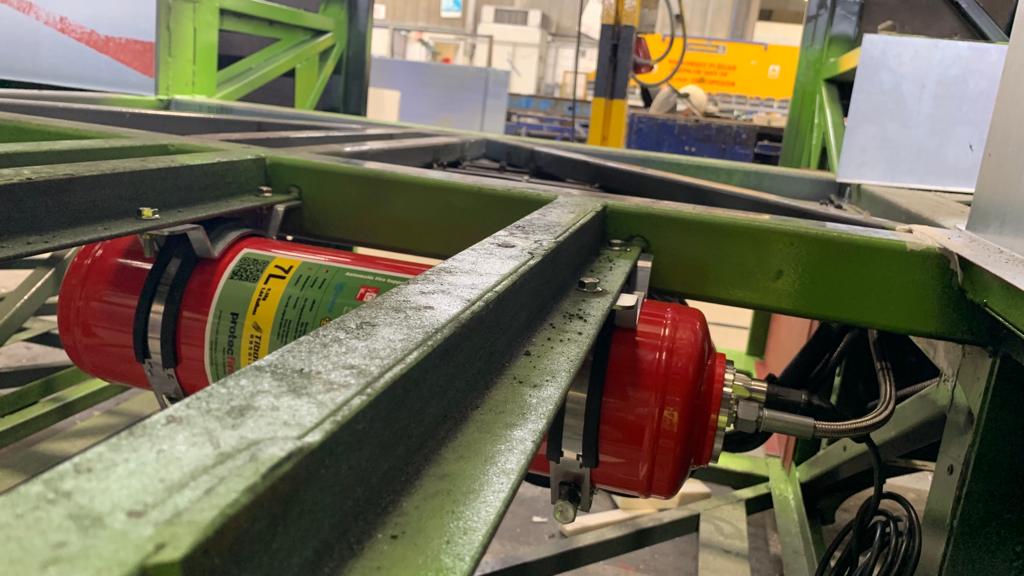

PATENTED Container - NO PRESSURE

  • The Container is not under pressure
  • The system only gains pressure when activated
  • Hybrid Suppression: Liquid | Nitrogen
  • R.O.P. (Rise of Pressure) system
  • One single line for detection and extinguishing
  • Can be installed in any position

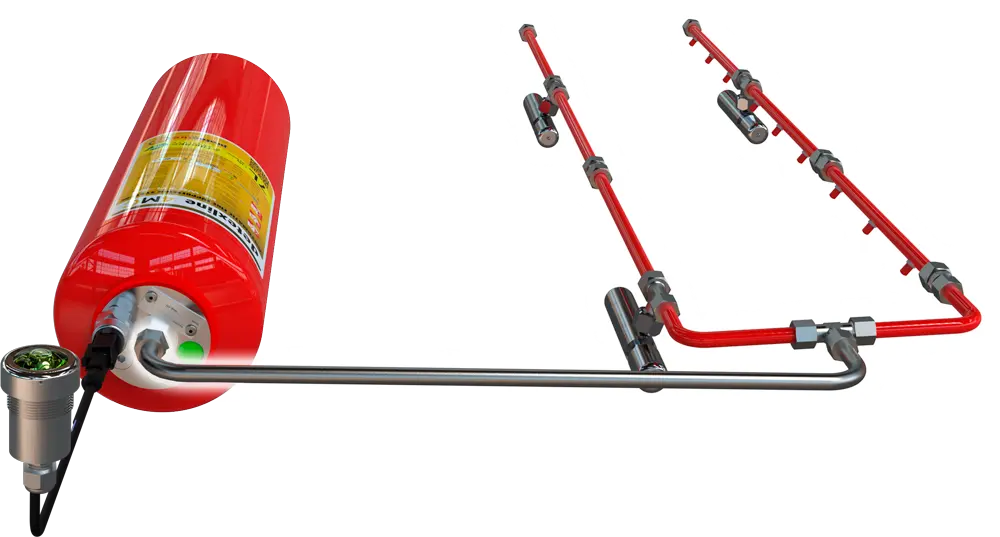

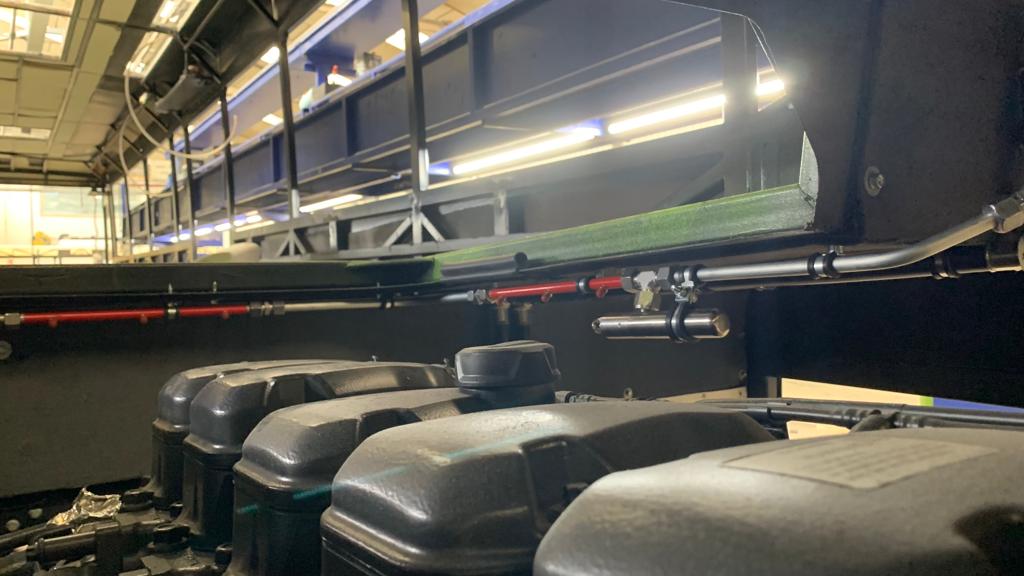

What is the detexline ®concept? One single pipeline network!

Fire suppression system for mining and construction machinery

Avoiding the usual fuse plastic tube detection, there is only one path to the system work: stainless-steel or galvanized piping with pneumatic activation from the detection, followed by the liquid agent discharge by the same piping.

Patented technology!

detexline® by protecfire®, is a patented system that uses only one network of piping for detection and extinguishing.

  • Better value
  • Avoids malfunctions
  • Fastest to install
  • Easy to provide maintenance
  • Simple and reliable
  • No false alarms
  • Patented
  • No pressure | no pressure leak problems
  • No corrosion
  • Optional in galvanized steel or stainless steel
  • Simple, super-fast and reliable
  • No false alarms.
  • Patented
  • Multiple temperature range:
    57 ºC | 68 ºC | 79 ºC | 93 ºC | 110 ºC | 141 ºC | 182 ºC | 230 ºC | 260 ºC
  • Sensitive to hidden fires
  • Robust and Precise
  • Stainless steel
  • Ultra-Fast RTI 12 (Reaction Time)

POWERFUL COOLING EFFECT

Liquid Extinguishing Agent

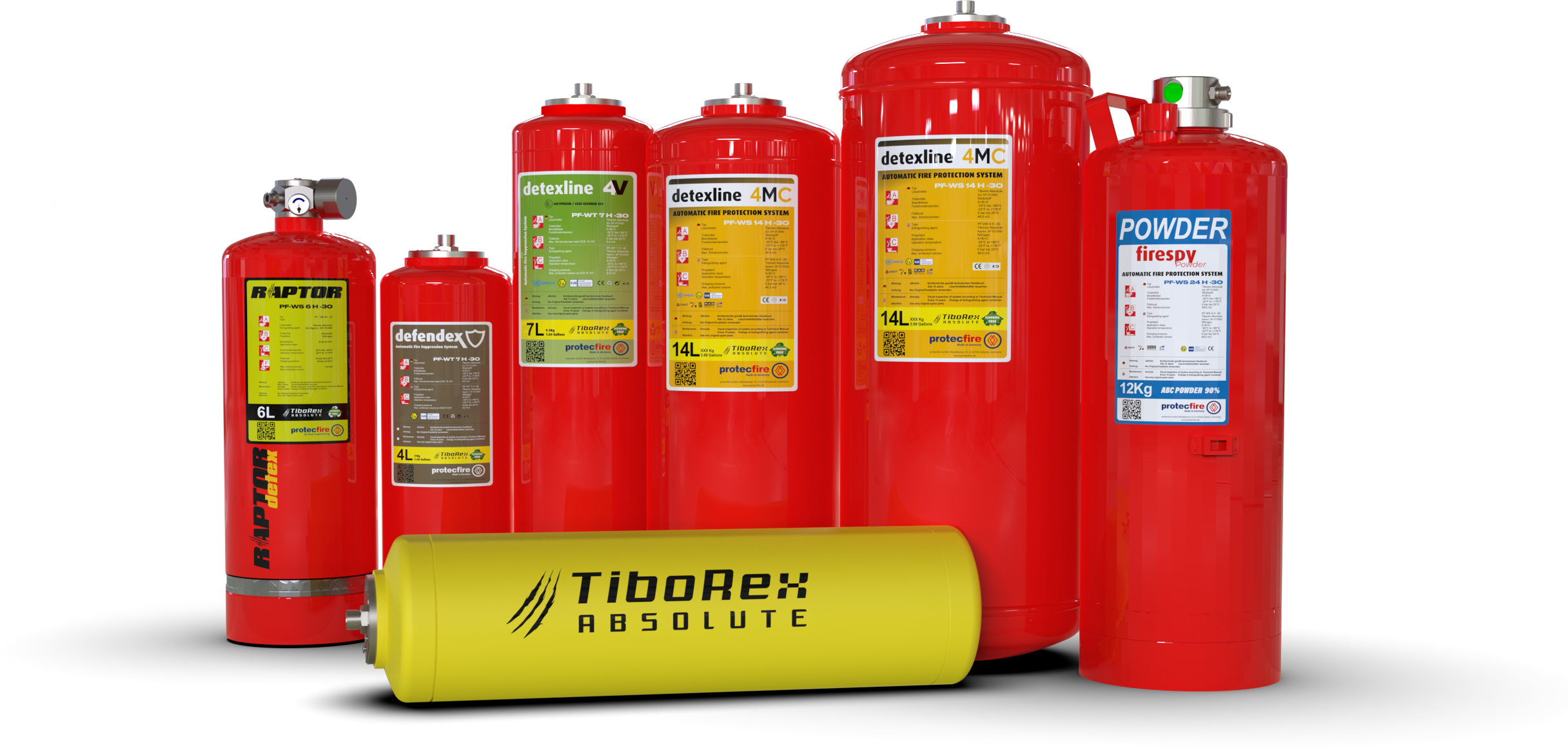

TiboRex® Absolute Special Liquid Extinguish Agent

TiboRex Absolute is a ready-to-use liquid special extinguishing agent without the addition of fluorochemicals for the highly effective extinguishing of solid fires (fire class A), liquids, non-polar hydrocarbons (fire class B) and edible fats and oils. The special formulation, whose main components are also used as food additives, guarantees exceptional extinguishing performance with unprecedented environmental protection.

Fire suppression system functions and mode of operation:

The fire-suppression system is based on the principle of a fine spray extinguishing system. The protecfire nozzles spray the extinguishing agent TiboRex Absolute as very fine droplets. The extinguishing agent droplets wet, impregnated and cool the burning surfaces.
Through reflections and turbulence, the extinguishing agent also reaches adjacent areas, which enables the entire engine compartment to be protected.

– Unpressurised standby mode for improved safety: The fire-suppression system is not pressurized until it is triggered.
– Low maintenance: first regular component replacement after 5 years.
– Self-sustaining without external energy: protecfire suppression systems operate pneumatically-mechanically. This means that they do not require any additional power supply.
– Automatic and/or manual triggering: Automatic triggering is effected by fire detection elements. The fire-suppression system can also be triggered by a pneumatic manual release mechanism.

protecfire uses thermopneumatic fire detection elements to detect fire. These elements only trigger the fire-suppression system if a specified temperature is exceeded. Failure due to the failure of electrical components is thus ruled out.
Fire detection elements with different triggering temperatures can be used because the engine compartment is not a thermally homogeneous area, but contains different temperature zones.

The fire detection elements are connected to a combined control and extinguishing line, the detexline. When a fire detection element is heated to its trigger temperature, a mechanism opens the built-in argon propellant cartridge. This causes an increase in pressure in the line. The pressure increase opens an N2 propellant cartridge in the extinguishing agent container. The released propellant presses the extinguishing agent through the line to the extinguishing nozzles.

Technical Properties

Name detexline 4V – certification E1 107 R-080052
Working Temperature Range Standard -30ºC to 80ºC
Technology Rise of Pressure
Detection and External Line One Integrated 12Ø pipeline
System Pressure No Pressure
Detection Technology SPY detection elements
Trigger Temperature Glass ampoule, 9 independent temperatures: 57 ºC | 68 ºC | 79 ºC | 93 ºC | 110 ºC | 141 ºC | 182 ºC | 230 ºC | 260 ºC
Life of detectors 10 Years
Nozzle types S1 / K1
Extinguishing Agent Tiborex Absolute
Extinguishing Agent Volume 4L, 7L, 14L, 24L
Extinguishing Technology Fine Spray Technology
Extinguishing Container (pressure) Pressureless (welded / sealed cartridge inside)
Product Material Stainless Steel
Alarm Signal Switch Yes
Maintenance Inspection Annually according to manual
Parts Replacement Duration 10 Years
Kits available 4L, 7L, 14L, 24L
Cylinders Dimensions 7L: 150 Ø X 585 ±2  | 14L:200 Ø X 580,5 ±2 | 24L: 246 Ø ±2 X 654,5 ±4

MOST FREQUENTLY ASKED QUESTIONS:

The system is free of dangers and easy to install. It can be installed in any vehicle: Construction, mining, buses, mini-buses, vans, motorhomes, jeeps, racing cars, etc.
diesel, electric or gas

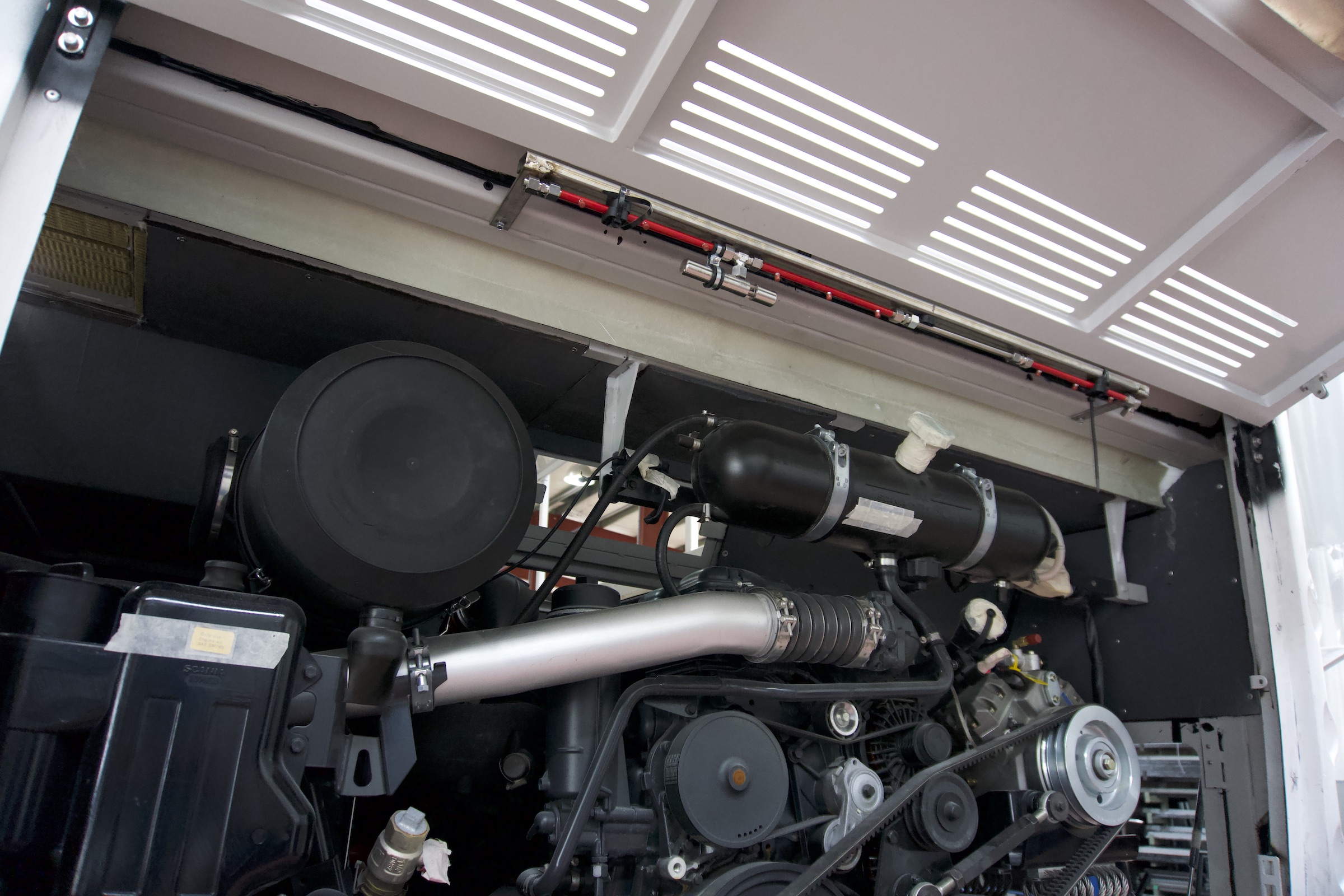

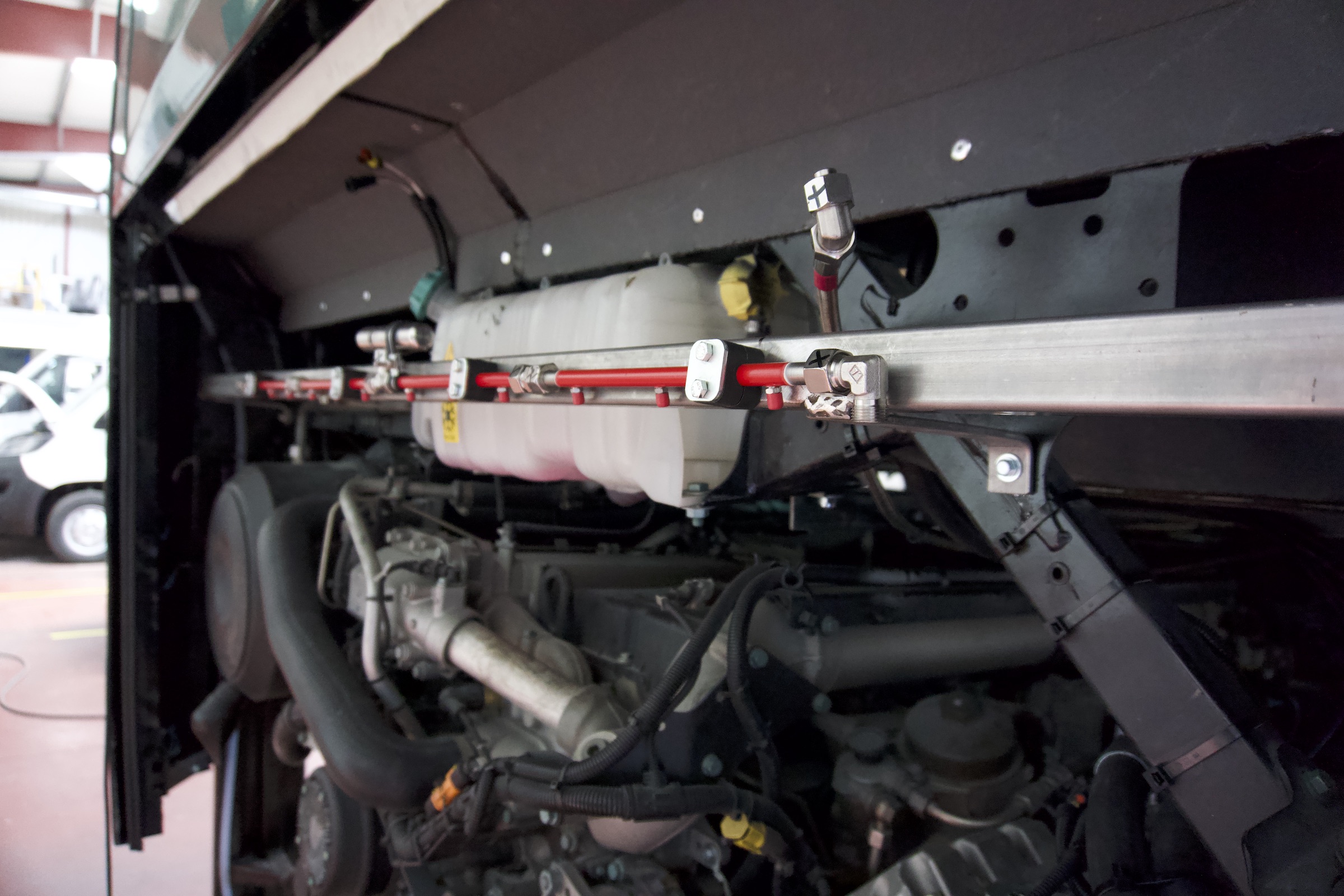

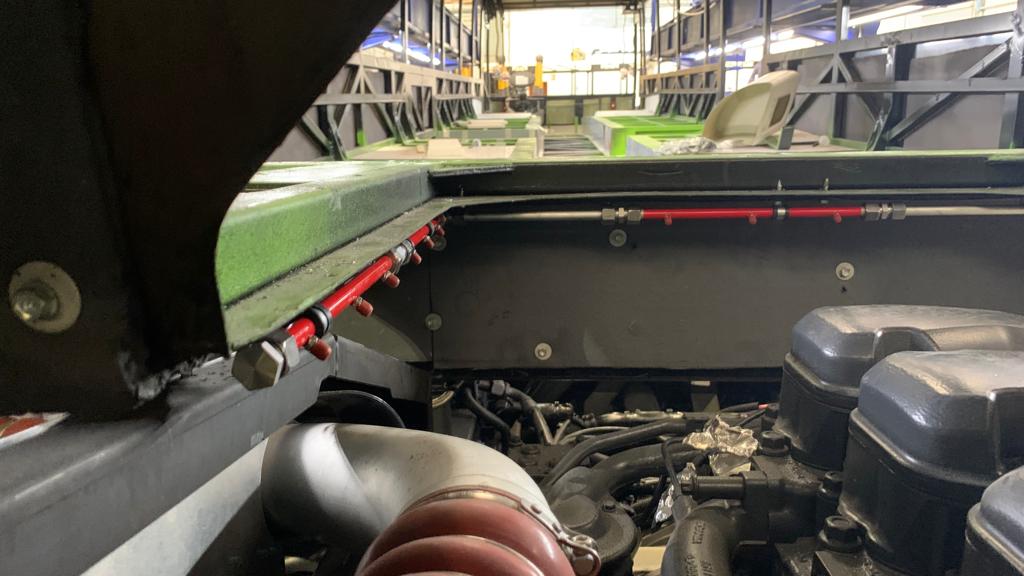

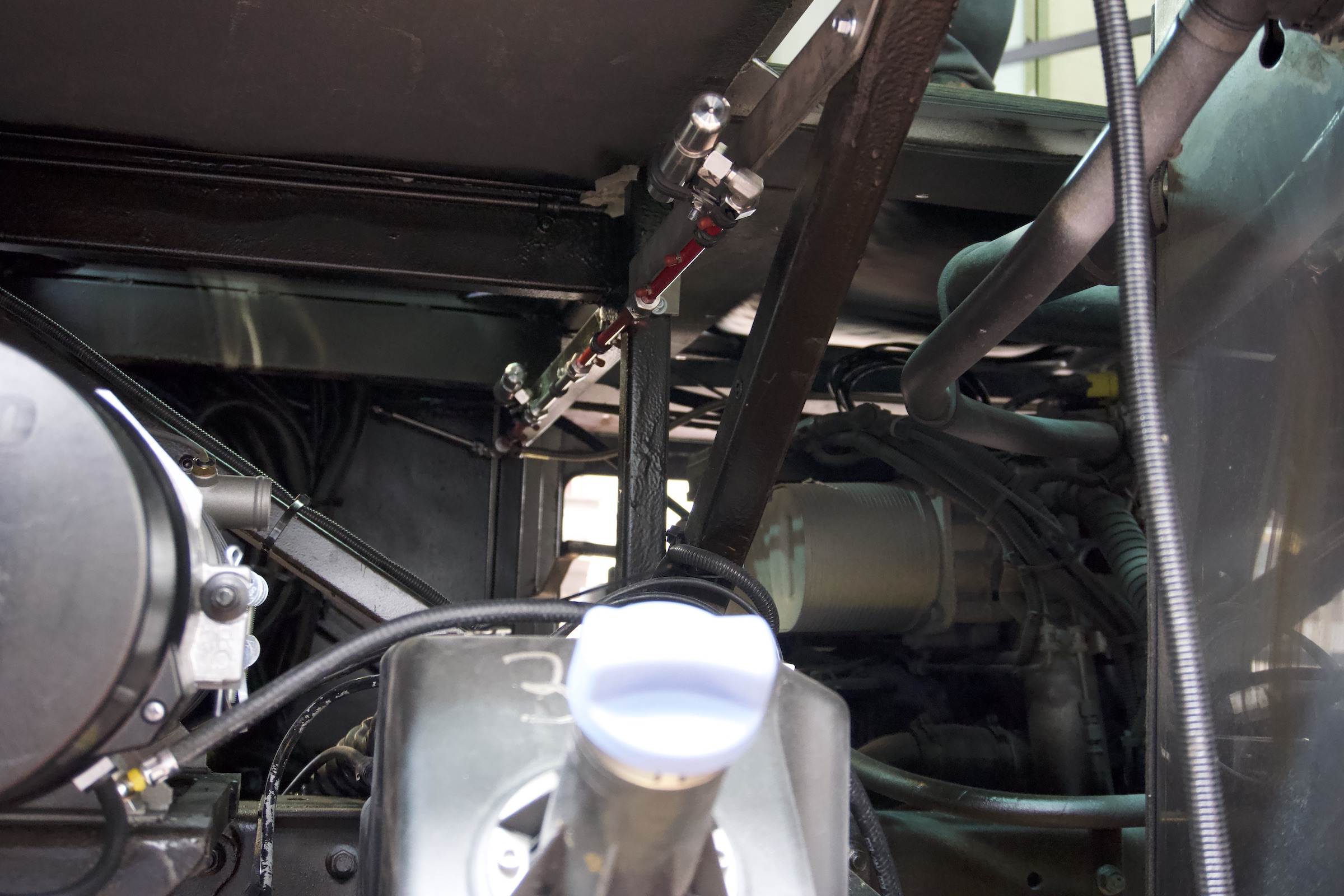

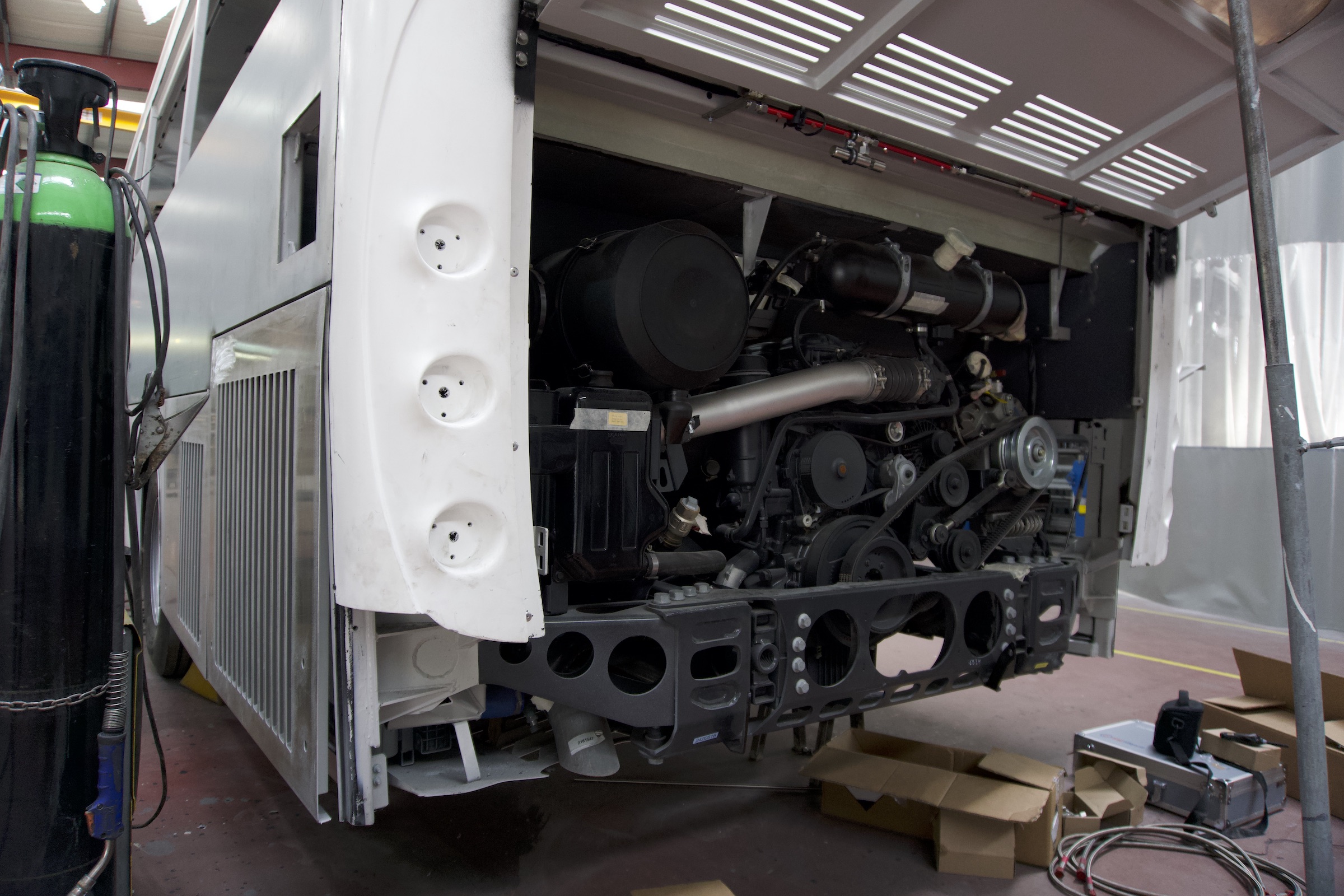

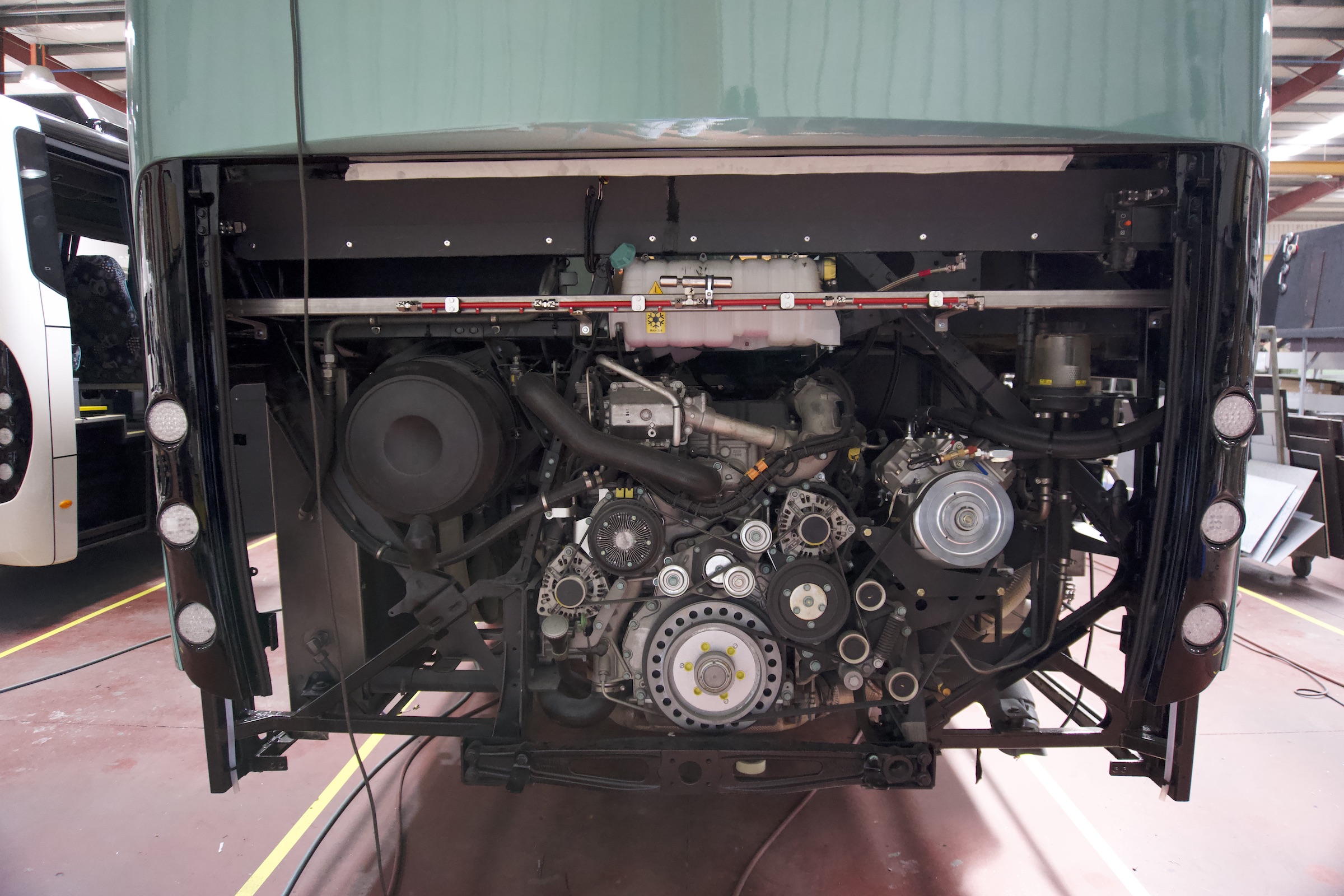

The thermal detectors are placed in the upper area of ​​the engine, in order to detect unusual heat accumulations, through temperatures previously chosen, normally our Kit for buses comes with 180ºC in the detection. In areas such as Park compartment, another lower temperature can be chosen, such as 130ºC. The dispersion nozzles are aimed at critical areas of the engine, such as turbo, exhaust, etc. This distribution makes point-to-point efficacy during extinction.

The system is applied in critical areas: engine compartment and park. It can also be applied to wheels and interiors. This system is modular and can be applied wherever desired.

TiboRex Absolute is a liquid extinguishing agent, in order to be safe and effective. Electrical components may be affected, but in any case they would be damaged by the onset of fire. All other equipment is never affected and subsequent cleaning is quick and easy. Other types of extinguishing agent (powder, gas, etc.) would not be as effective, as they can be expelled by the vehicle’s progress, not acting on fire.

No. Depending on the size and layout of the compartment. In the case of a bus engine, the job is done in about 3 hours maximum. The system is easy to assemble and also to disassemble.

No. Our system is accurate and detects temperatures with precision. Depending on the location where the thermal sensors are placed, a specific temperature is chosen only when the compartment reaches that exact temperature.

No. Our nozzles are designed to stay clean and unobstructed. Engine compartments are specifically designed, maintaining their effectiveness throughout their service life.
