Premium Automatic Fire Suppression Systems

Mining | Agriculture | Construction | Tunnel Boring | Forestry | Railway Vehicles

Ownership Unique Advantages

  • No pressure
  • No electricity
  • (nearly) maintenance-free
  • Ultrafast detection & extinguishing
  • Hybrid system (liquid/gas)
  • Works in all angles and positions
  • Short downtimes through maintenance on the spot (every 5 years)
  • Mining Certification
  • Works in temperatures from -30 to 80 degrees celsius

Latest certification process

protecfire conducted at RISE (Sweden) tests for fire suppression systems intended for engine compartments according to SP Method 4912, UNECE R107, AIS 135 – SPCR 183 or SPCR 199 (P-mark).

Tests made with 4 liters detexline container, with Tiborex Absolute extinguishing agent.
All tests were successful.

Built for  hard-working machinery!

Trusted By:

Defense Vehicles | Mining Vehicles | Construction Vehicles | Tunnel Boring Machinery | Agricultural | Forest | Machinery

Born from the underground mining

Single Line

Fully Mechanical

Easy to Install

Stainless Steel

Super Robust

-30ºc to 80ºc

No Electricity


Low Maintenance

No Pressure

Delivering you the “Tough One”

Protecting all kind of vehicles

From underground mining vehicles to surface trains. Our systems adapt to any circumstance very easily.

Consult us to know about our projects and success cases around the world.

You need the Simplicity and Robustness, that make detexline 4MC the world leading solution.

    Extremely compact!


    4 Lt System (smaller vehicles)
    7 Lt System (up to 4m3
    14 Lt System
    24 Lt System

    Multiple containers can be installed in 1 system
    Sectorization possibility (battery compartment/engine) with different areas of detection and extinguishing.

    What is the detexline concept?

    One single pipeline network!

    detexline by protecfire, is a patented system that uses only one network of piping for detection and extinguishing.

    Less equipment:
    – Better value
    – Avoids malfunctions
    – Fastest to install
    – Easy to provide maintenance

    Avoiding the usual fuse plastic tube detection, there is only one path to the system work: stainless-steel or galvanized piping with pneumatic activation from the detection, followed by the liquid agent discharge by the same piping.

    Patented technology!

    Tough like no other!

    Functions and mode of operation

    What are the features of the fire-suppression system?

    The fire-suppression system is based on the principle of a fine spray extinguishing system. The protecfire nozzles spray the extinguishing agent TiboRex Absolute as very fine droplets. The extinguishing agent droplets wet, impregnated and cool the burning surfaces.
    Through reflections and turbulence, the extinguishing agent also reaches adjacent areas, which enables the entire engine compartment to be protected.

    Other features:

    – Unpressurised standby mode for improved safety: The fire-suppression system is not pressurized until it is triggered.
    – Low maintenance: first regular component replacement after 5 years.
    – Self-sustaining without external energy: protecfire suppression systems operate pneumatically-mechanically. This means that they do not require any additional power supply.
    – Automatic and/or manual triggering: Automatic triggering is effected by fire detection elements. The fire-suppression system can also be triggered by a pneumatic manual release mechanism.

    How does fire detection work?

    protecfire uses thermopneumatic fire detection elements to detect fire. These elements only trigger the fire-suppression system if a specified temperature is exceeded. Failure due to the failure of electrical components is thus ruled out.
    Fire detection elements with different triggering temperatures can be used because the engine compartment is not a thermally homogeneous area, but contains different temperature zones.

    What happens in the event of a fire?

    The fire detection elements are connected to a combined control and extinguishing line, the detexline. When a fire detection element is heated to its trigger temperature, a mechanism opens the built-in argon propellant cartridge. This causes an increase in pressure in the line. The pressure increase opens an N2 propellant cartridge in the extinguishing agent container. The released propellant presses the extinguishing agent through the line to the extinguishing nozzles.

    TiboRex® Absolute
    Special Liquid Extinguish Agent

    TiboRex Absolute is a ready-to-use liquid special extinguishing agent without the addition of fluorochemicals for the highly effective extinguishing of solid fires (fire class A), liquids, non-polar hydrocarbons (fire class B) and edible fats and oils. The special formulation, whose main components are also used as food additives, guarantees exceptional extinguishing performance with unprecedented environmental protection.


    On which vehicles can the fire suppression system be applied?
    The system is free of dangers and easy to install. It can be installed in any vehicle: Construction, mining, buses, mini-buses, vans, motorhomes, jeeps, racing cars, etc.
    diesel, electric or gas

    Where is the automatic detection and extinguishing system placed?
    The thermal detectors are placed in the upper area of ​​the engine, in order to detect unusual heat accumulations, through temperatures previously chosen, normally our Kit for buses comes with 180ºC in the detection. In areas such as Park compartment, another lower temperature can be chosen, such as 130ºC. The dispersion nozzles are aimed at critical areas of the engine, such as turbo, exhaust, etc. This distribution makes point-to-point efficacy during extinction.

    Can I protect only one area or do I have to equip the entire vehicle?
    The system is applied in critical areas: engine compartment and park. It can also be applied to wheels and interiors. This system is modular and can be applied wherever desired.

    f there is a fire, will my equipment be damaged by the extinguishing agent?
    TiboRex Absolute is a liquid extinguishing agent, in order to be safe and effective. Electrical components may be affected, but in any case they would be damaged by the onset of fire. All other equipment is never affected and subsequent cleaning is quick and easy. Other types of extinguishing agent (powder, gas, etc.) would not be as effective, as they can be expelled by the vehicle’s progress, not acting on fire.

    Does it take a long time to install a system?
    No. Depending on the size and layout of the compartment. In the case of a bus engine, the job is done in about 3 hours maximum. The system is easy to assemble and also to disassemble.

    Can the system fire accidentally?
    No. Our system is accurate and detects temperatures with precision. Depending on the location where the thermal sensors are placed, a specific temperature is chosen only when the compartment reaches that exact temperature.

    Can’t the nozzles clog?
    No. Our nozzles are designed to stay clean and unobstructed. Engine compartments are specifically designed, maintaining their effectiveness throughout their service life.

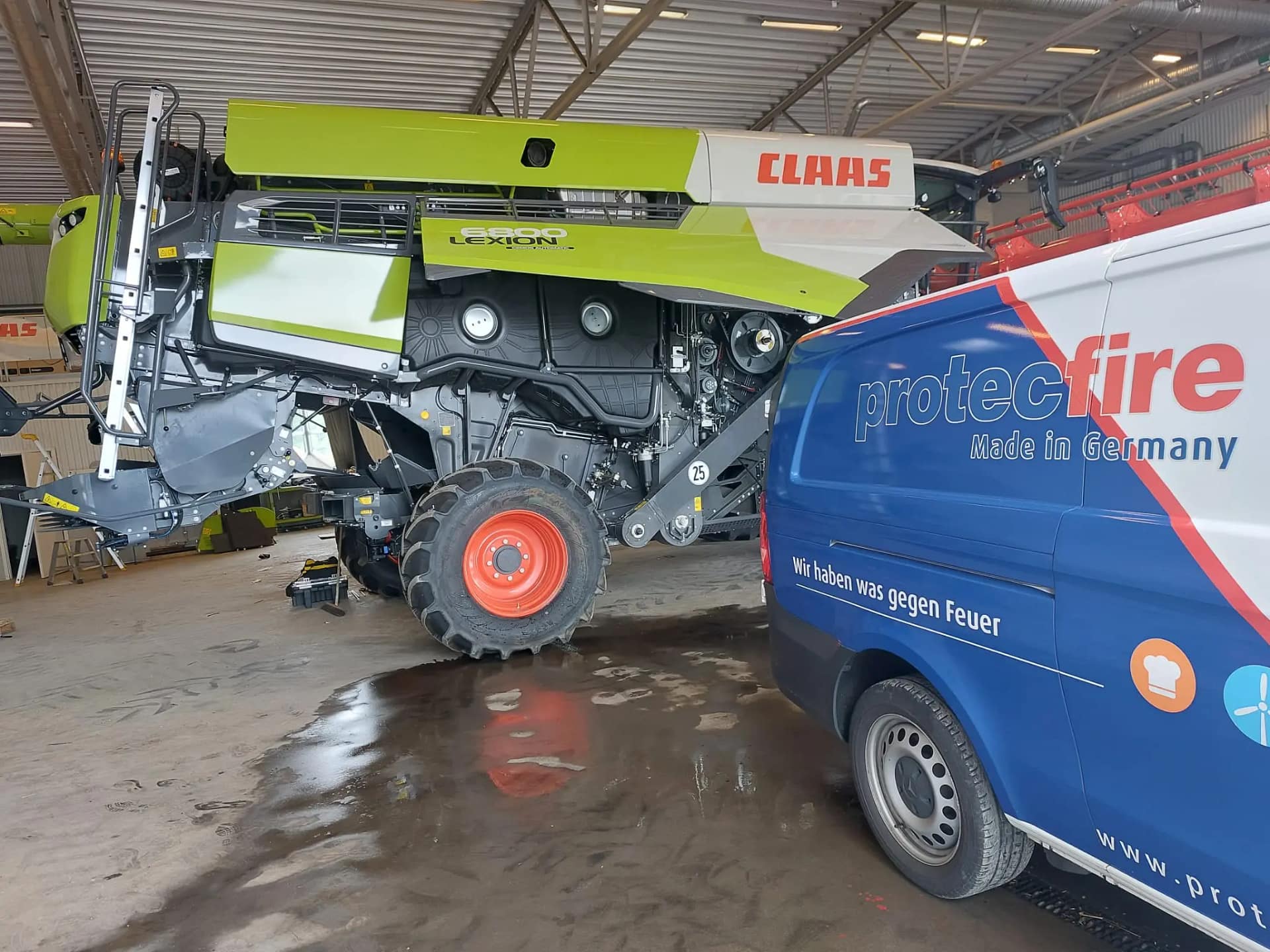

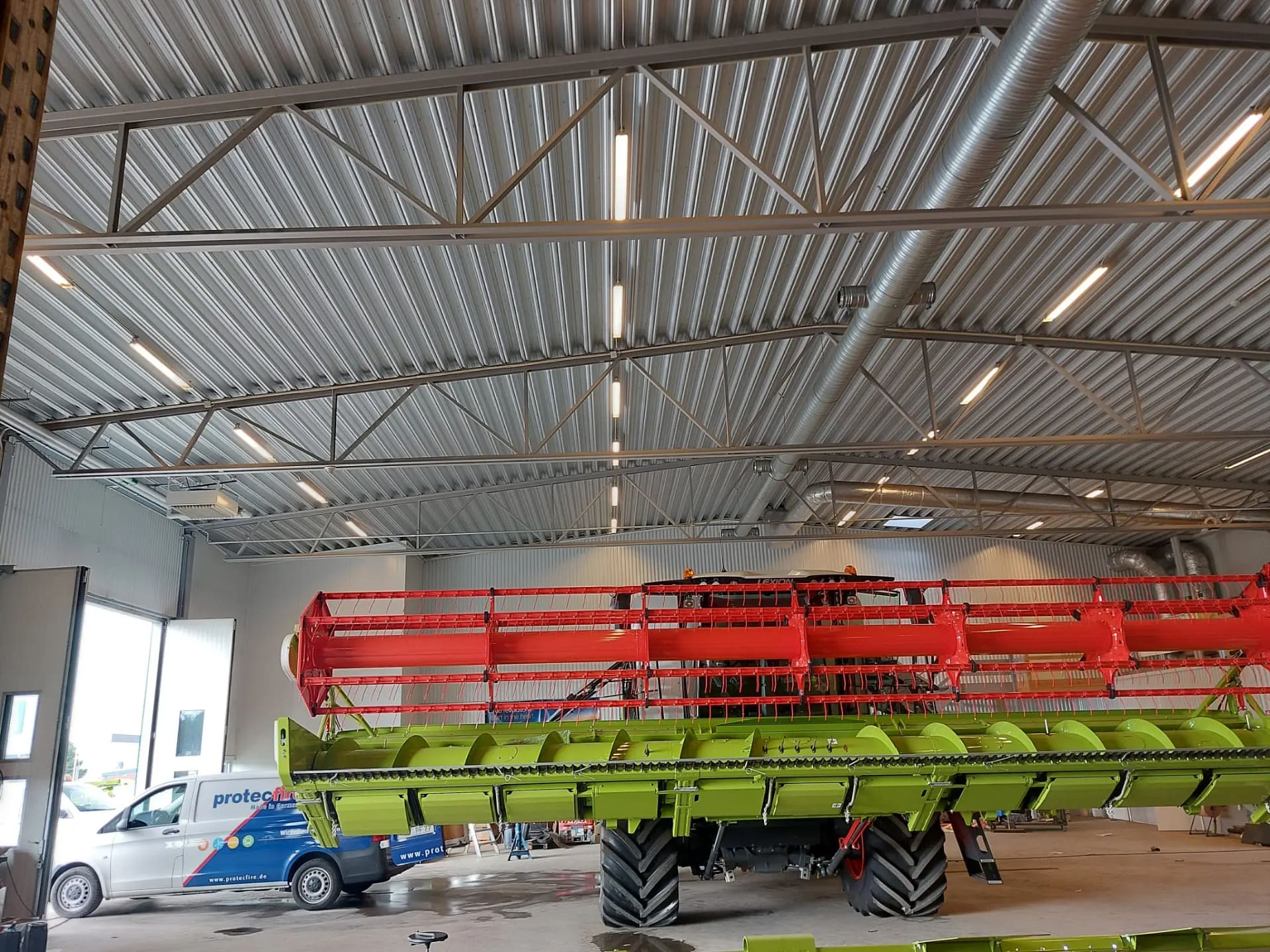

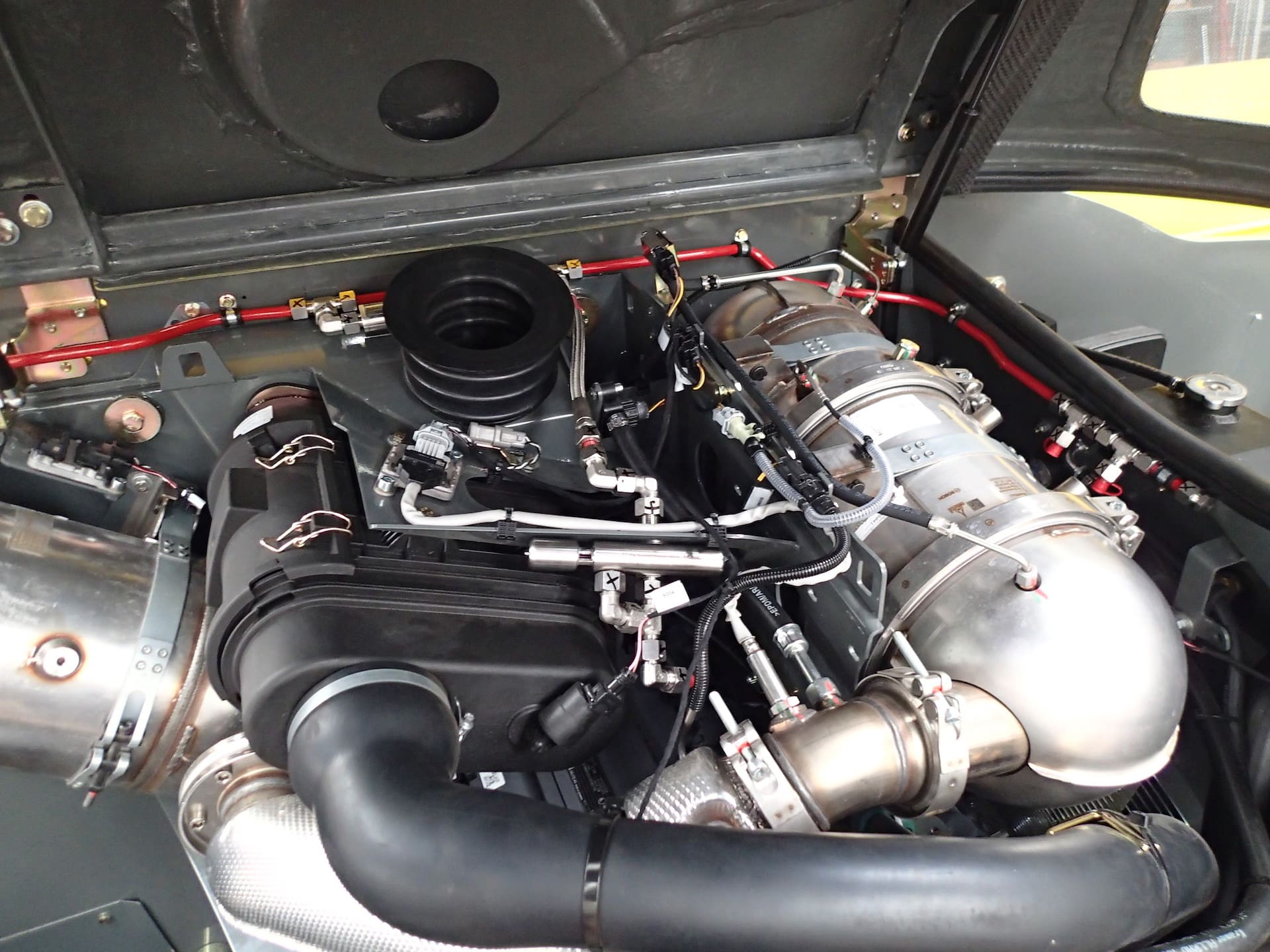

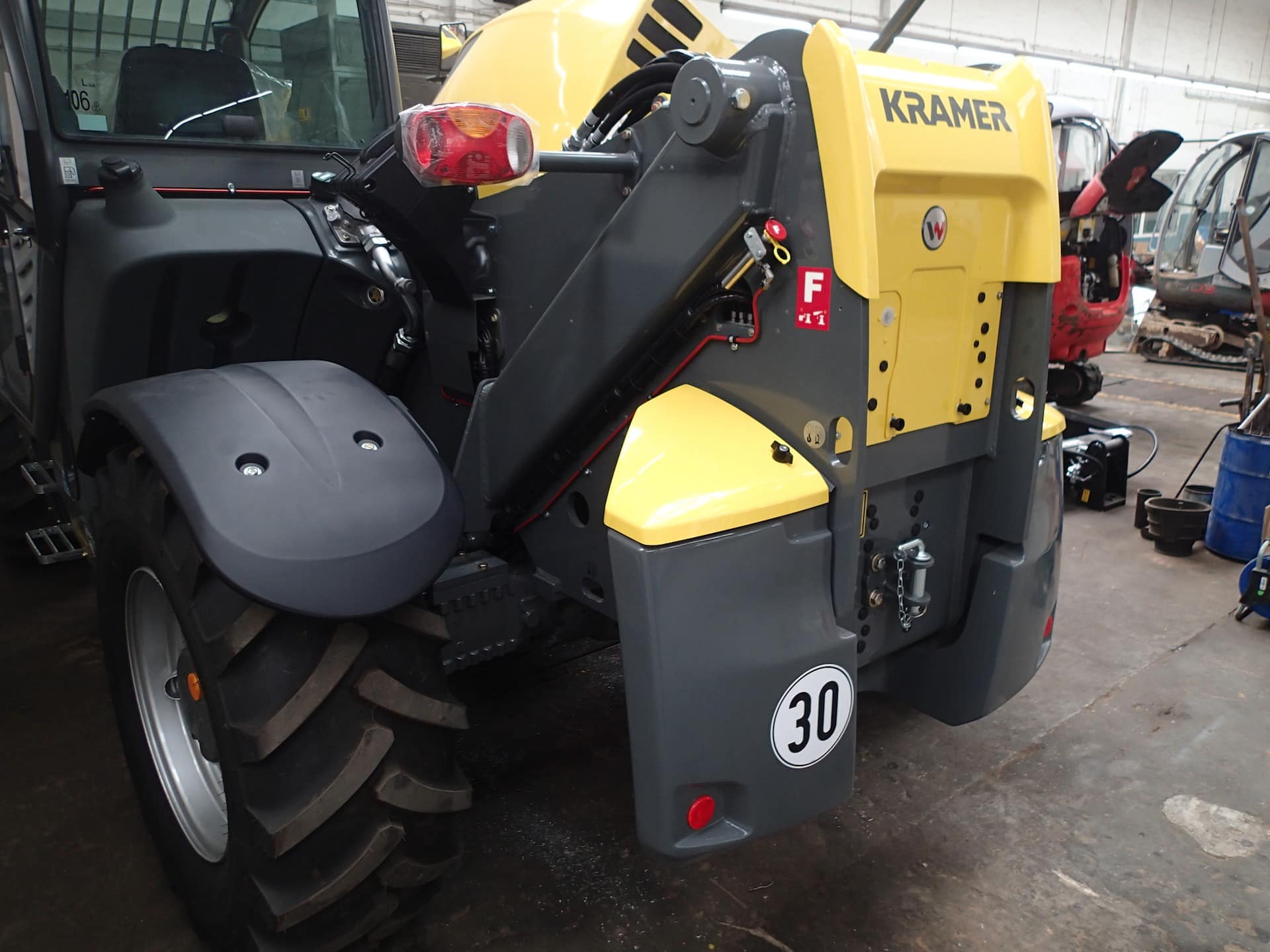

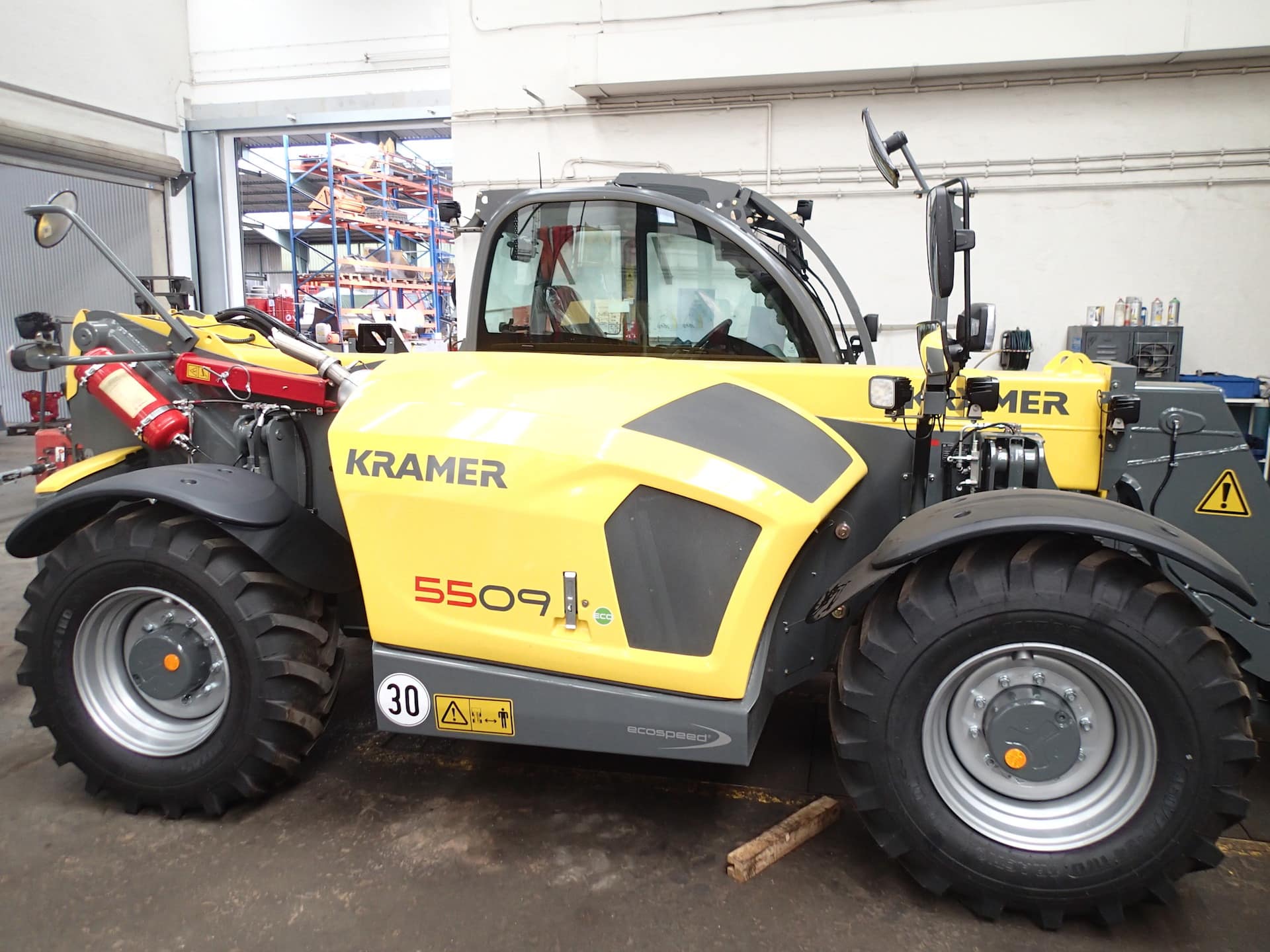

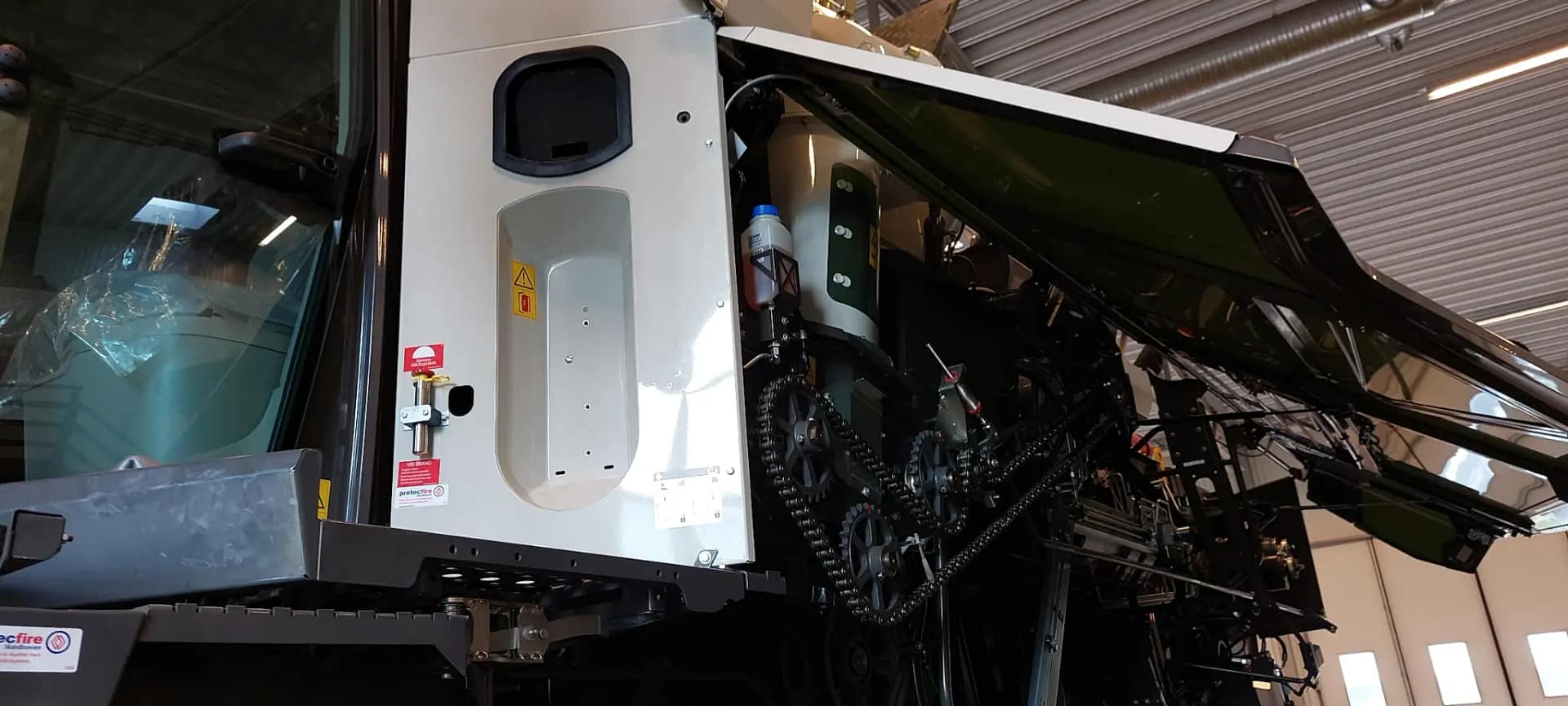

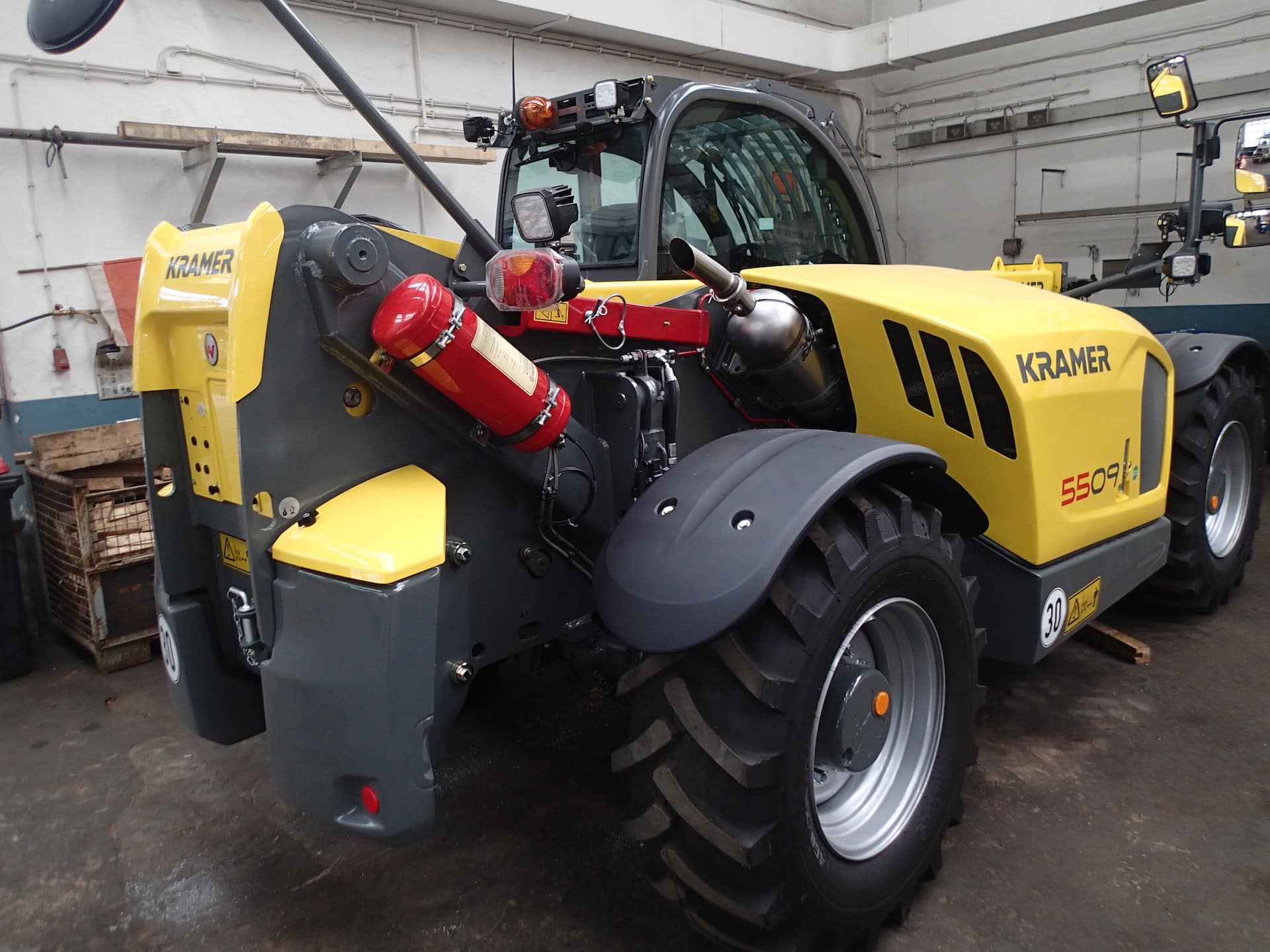

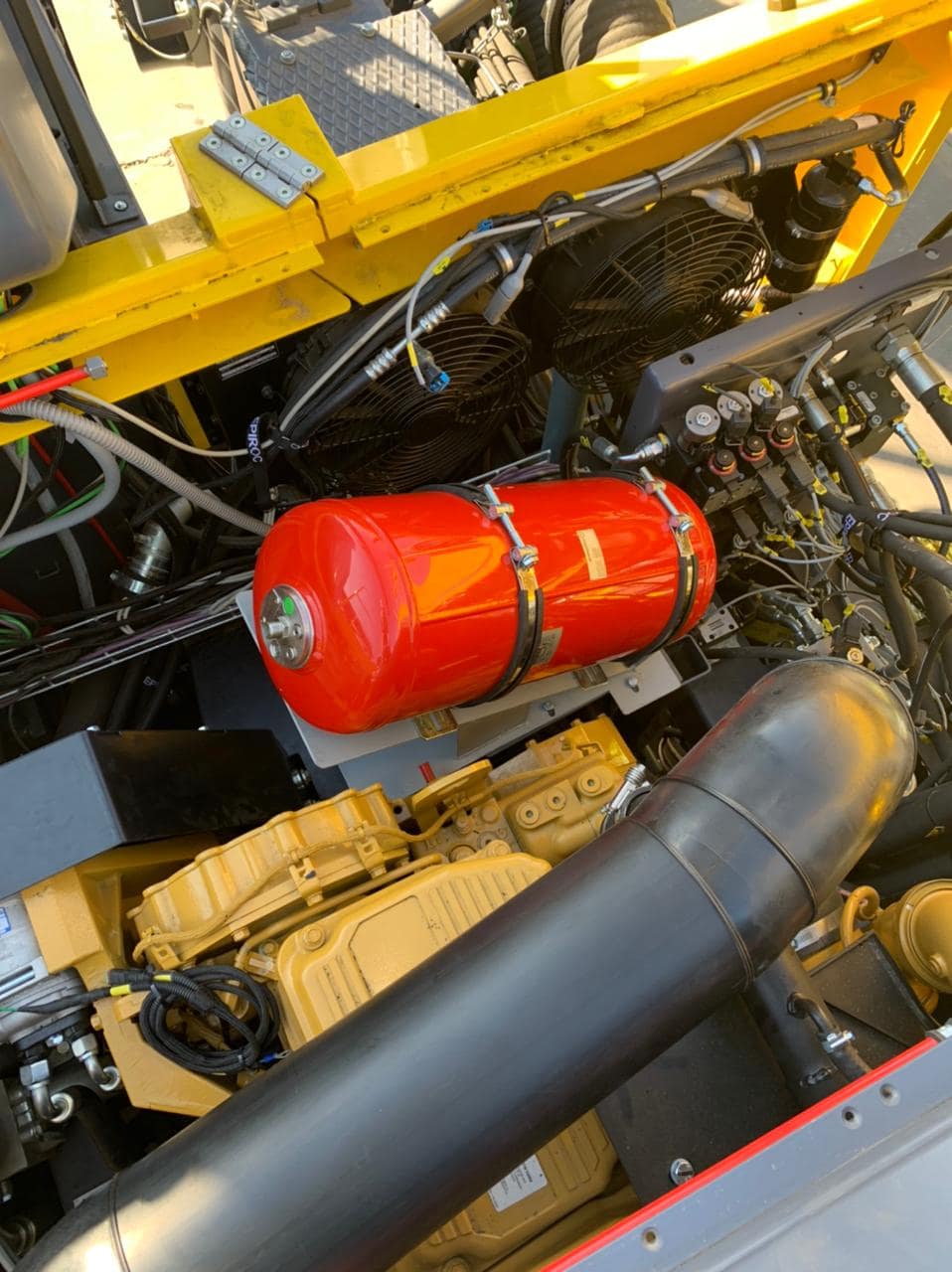

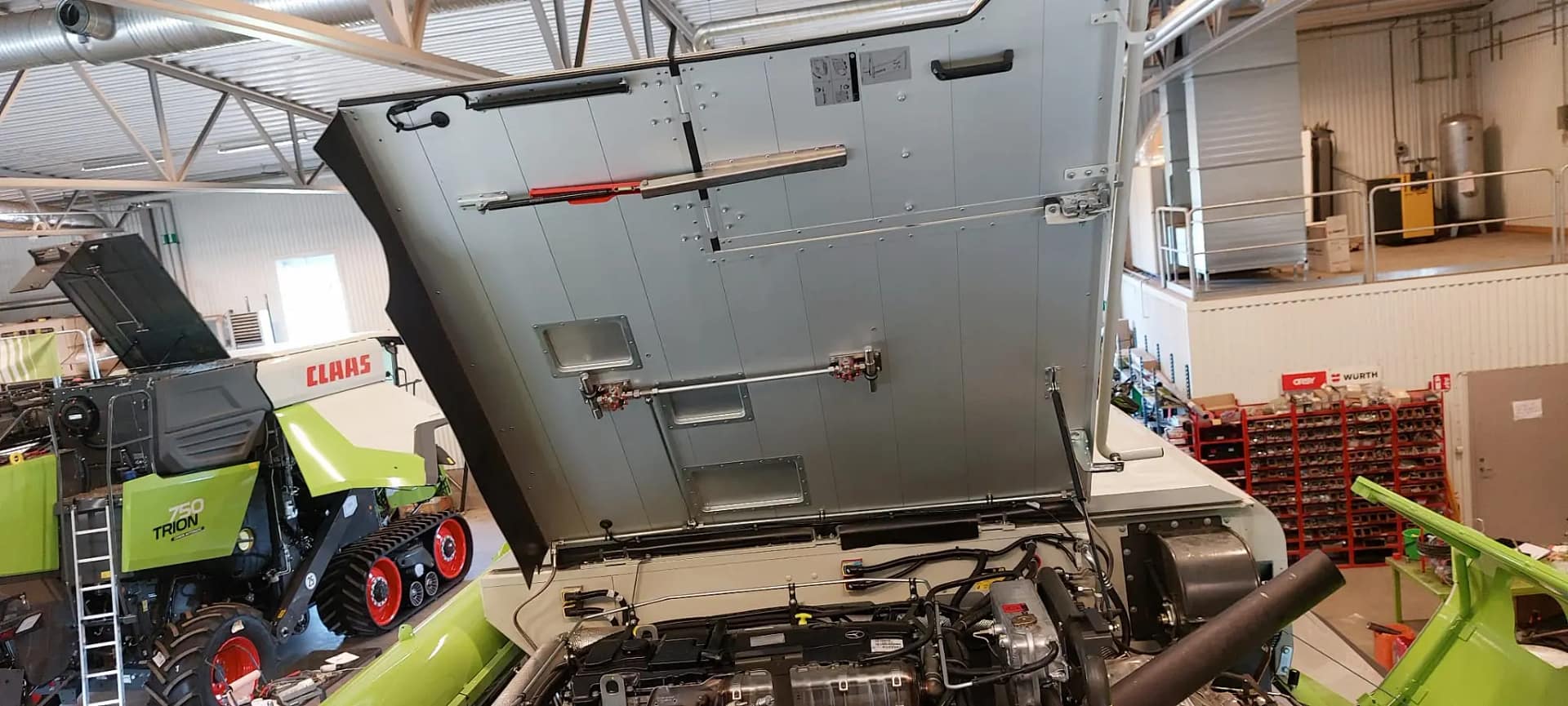

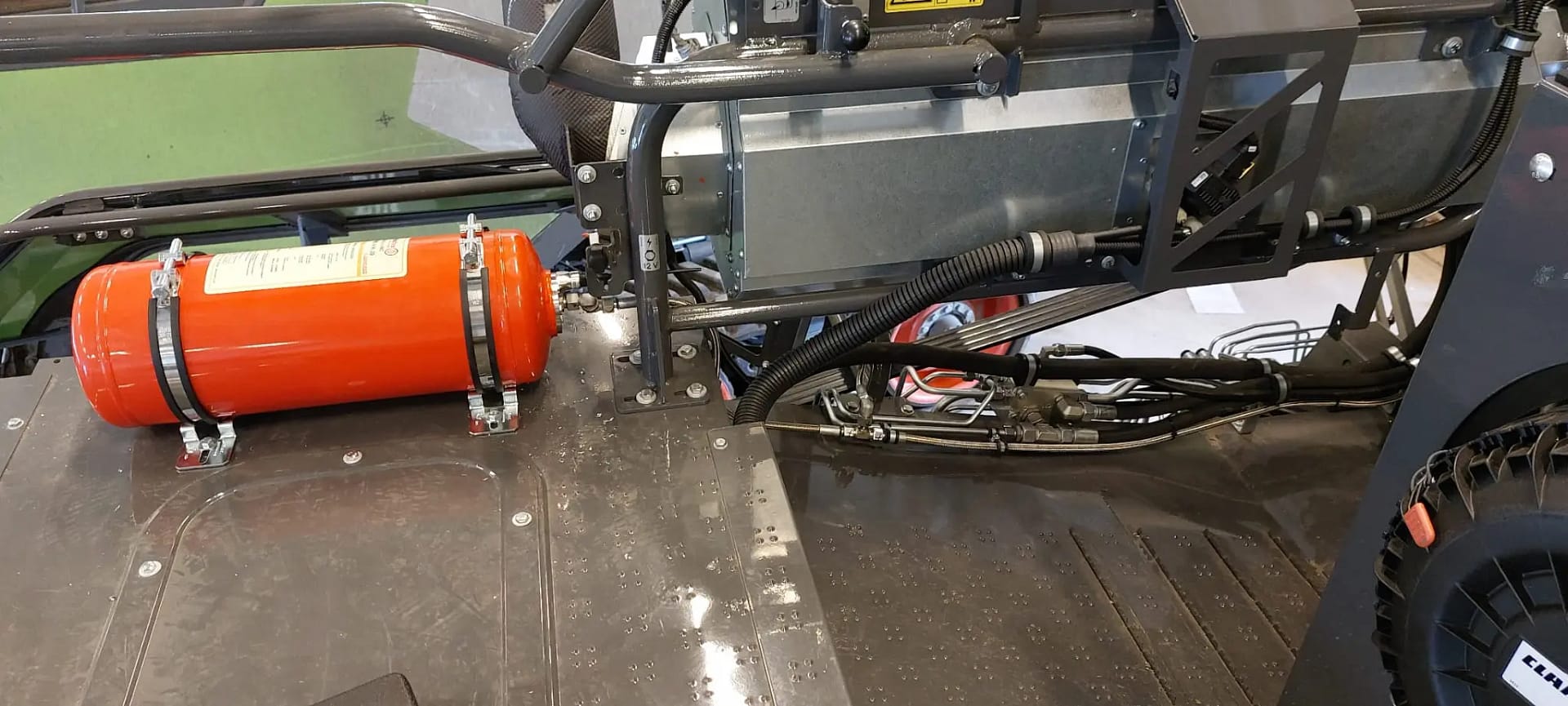

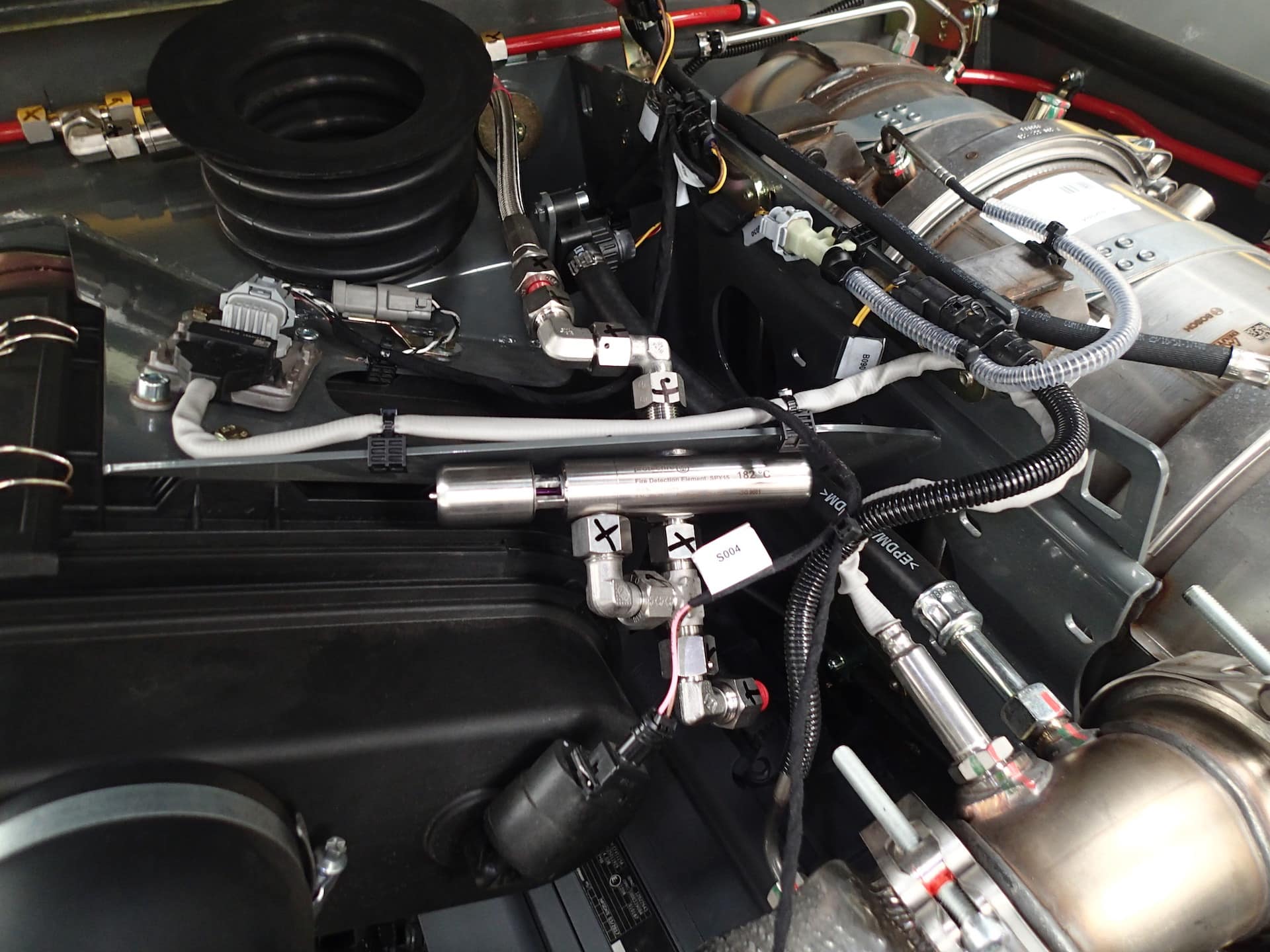

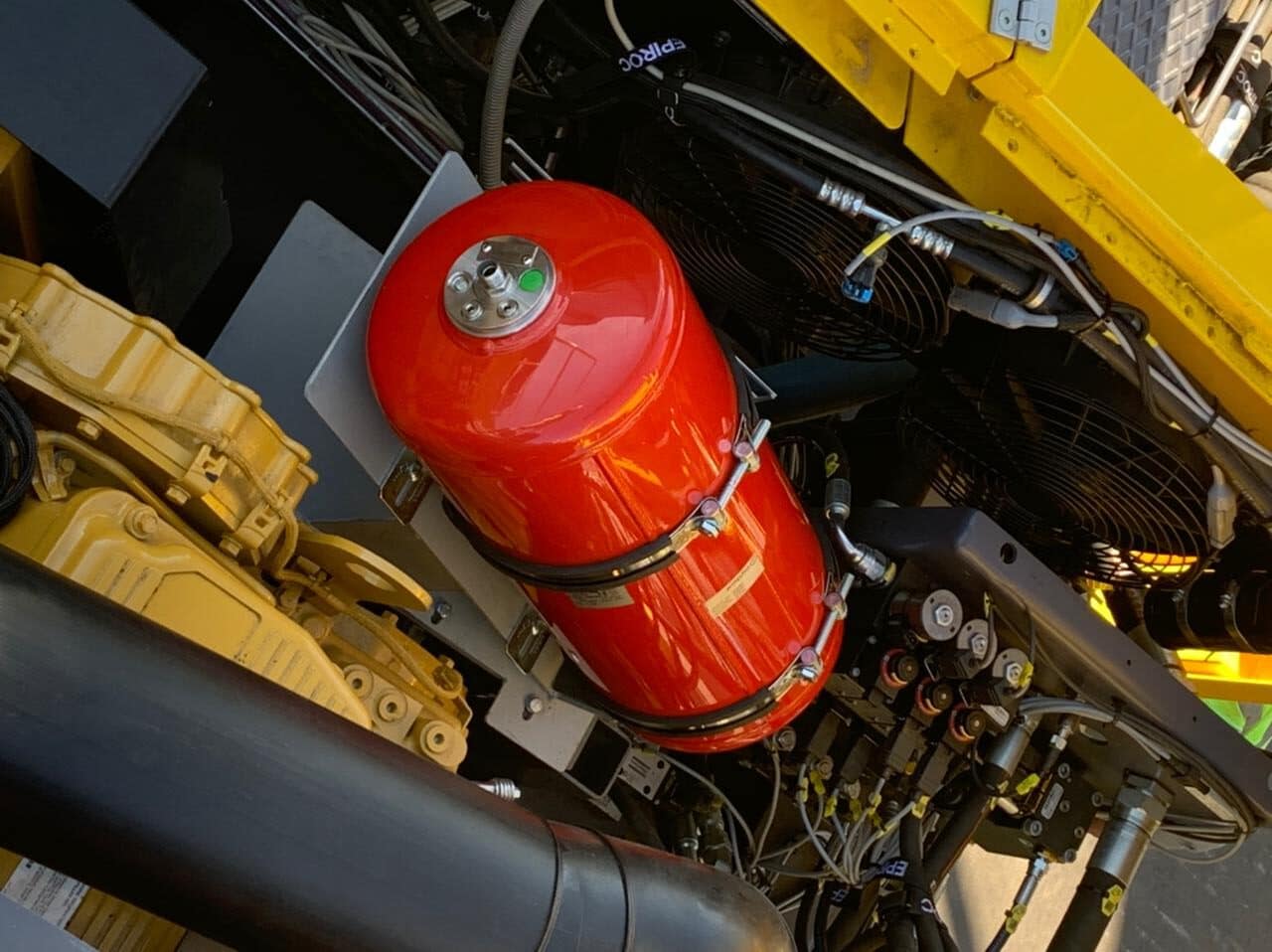

    Some installations references:
