kitchen sector fire suppression systems

Fire Suppression Systems for Kitchens, Fryers and Industrial food facilities

kitchen sector fire suppression systems

Fire Suppression Systems for Commercial Kitchens, Industrial Kitchens, Fryers and food facilities machinery

Risk in kitchens – Fire protection is needed


When preparing meals in large kitchens and catering establishments, large quantities of hot fat and oil are in use. Even when handled with the utmost care, they pose a considerable fire risk. An unnoticed failure in the overheating protection can easily cause a major fire. protecfire offers a competitively priced and effective solution for this.

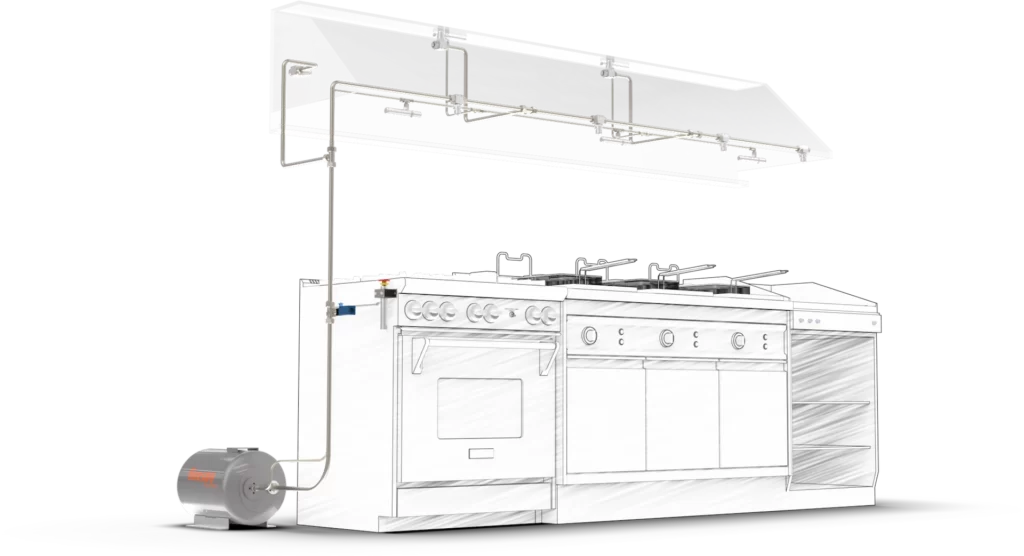

Functionality and operation of a compact fine-spray extinguishing system:

In case of fire, the pneumatic trigger elements are automatically activated by the increasing temperature. The trigger temperature is set at 93°C. The triggering of the system causes a rise in pressure in the pilotline which serves as a signal for the extinguishing process. Our fire-fighting system is based on the principle of a finespray extinguishing system which atomizes the extinguishing agent as a fine mist with the aid of our own specially developed nozzles. In the extinguishing process, the surface of solids and cooking oil is thoroughly wetted and impregnated. A protective film is formed on flammable, liquid fat, blanketing fire areas with a sustainable gas-proof layer.

The protecfire extinguishing system is perfectly suitable for this area because of its tough compactness and insensitivity to external harsh environment. It is a very suitable solution for digging mineral coal because there are no electrical components in the system that could cause an ignition.

Since the system is almost maintenance-free, high expenses and downtimes are significantly reduced for the operating company. Multiple fire tests carried out by Deutsche Montan Technologie have proven the effectiveness of the extinguishing technology.


  • Distance to the frying surface can be up to 1.83m
  • No pressure
  • No electricity (nearly) maintenance free
  • Ultrafast detection & extinguishing
  • Hybrid system (liquid/gas)
  • Works in all angles and positions
  • VdS certification S 613002
  • One nozzle for everything
  • No Caps due to patented nozzle
  • No replacement of components for 10 years

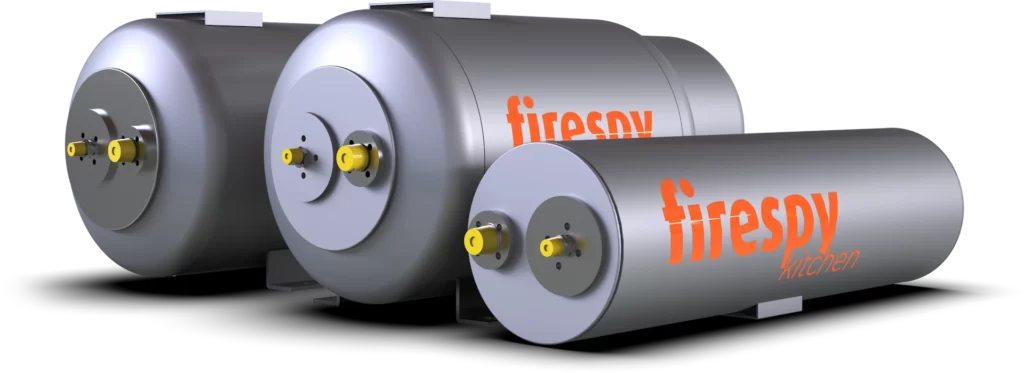

  • Only one compact container – no control cabinet needed

Go to recommended product:

The Raptor fire protection can be used in Kitchens, delivering a lower cost solution with premium grade equipment. CE Certification

Go to recommended product:

VdS Certified Fire Protection for Kitchens and Industrial Fryers
